AB269936

20nm Gold Nanoparticles (10 OD)

20nm Gold Nanoparticles (10 OD)

Be the first to review this product! Submit a review

|

(0 Publication)

20nm Gold Nanoparticles (10 OD) (ab269936) is an aqueous suspension of spherical 20 nm colloidal gold nanoparticles in citrate buffer.

- Suitable for Protein adsorption, Oligonucleotide adsorption and Surface modifications assays
- Uniform spherical shape and narrow size distribution
- Consistent high quality and batch-to-batch reproducibility
- Available in different formats to fit your experimental needs
3 Images
Electron Microscopy - 20nm Gold Nanoparticles (10 OD) (AB269936)
  • EM

Supplier Data

Electron Microscopy - 20nm Gold Nanoparticles (10 OD) (AB269936)

Electron microscopy (TEM) example pictures showing the high consistency of size and shape of 20nm Gold Nanoparticles (10 OD) (ab269936) (A) compared to that of aggregated, irregular shaped and sized gold nanoparticles of a leading competitor (B).

Functional Studies - 20nm Gold Nanoparticles (10 OD) (AB269936)
  • FuncS

Supplier Data

Functional Studies - 20nm Gold Nanoparticles (10 OD) (AB269936)

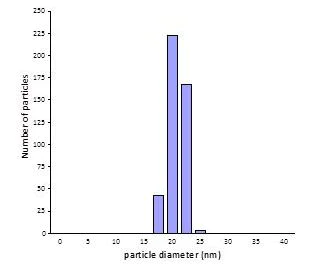

Size distribution of 20nm Gold Nanoparticles (10 OD) (ab269936) displaying a narrow size distribution with a CV (standard deviation / diameter) of less than 10%.

Spectrum - 20nm Gold Nanoparticles (10 OD) (AB269936)
  • Spectrum

Supplier Data

Spectrum - 20nm Gold Nanoparticles (10 OD) (AB269936)

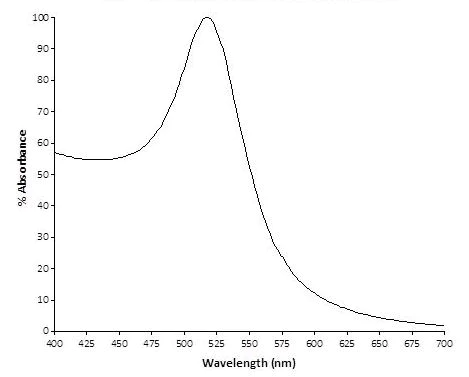

UV-Vis spectrum of 20nm Gold Nanoparticles (10 OD) (ab269936).

Key facts

製品の状態

Liquid

form

バッファー組成

pH: 7 Constituents: 0.0566% Gold nanoparticles, 0.00003% Sodium citrate

storage-buffer

製品の詳細

20nm Gold Nanoparticles (10 OD) (ab269936) is an aqueous suspension of spherical metallic nanoparticles manufactured to the highest standard to ensure:

  • Uniform spherical shape
  • Narrow size distribution: 20nm ± 2nm, <10% CV
  • Ultra high quality
  • Batch to batch consistency
  • High efficiency antibody binding for maximum sensitivity
  • Available at high concentrations to simplify assay development.

This product is manufactured by Expedeon, an Abcam company. It was previously called 20nm Gold Nanoparticles (10 OD). Expedeon product code 3210-0010 is the same as the 10 mL size of this product and code 3210-0100 is the same as the 100 mL size.

Our colloidal Gold Nanoparticles are suspended in citrate buffer and are suitable for:

  • Protein adsorption
  • Oligonucleotide adsorption
  • Surface modifications.

Narrow size distribution and consistent shape is important and preferable for most applications.

A consistent, spherical shape means that particles are less prone to aggregation, which can be a problem associated with gold nanoparticles. Furthermore uniform shape ensures consistent binding of antibodies, ensuring reliable assay results.

Once the product is opened, it is recommended to use it within 6 months to ensure optimal performance.

出荷温度及び保存条件

出荷温度
Ambient - Cannot Ship with Ice
短期保存温度
+4°C
長期保存温度
+4°C
保管に関する情報
Do Not Freeze

製品プロトコール

ターゲットの情報
