Anti-RTN3/HAP 抗体

• WB

Lab

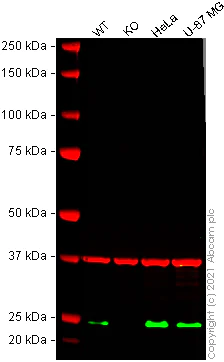

Western blot - Anti-RTN3/HAP antibody (AB68328)

False colour image of Western blot : Anti-RTN3/HAP antibody staining at 1/500 dilution, shown in green; Rabbit Anti-GAPDH antibody [EPR16891] (ab181602) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab68328 was shown to bind specifically to RTN3/HAP. A band was observed at 24 kDa in wild-type HEK-293T cell lysates with no signal observed at this size in RTN3 knockout cell line ab266517 (knockout cell lysate ab258647). To generate this image, wild-type and RTN3 knockout HEK-293T cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) at 1/20000 dilution.

All lanes:

Western blot - Anti-RTN3/HAP antibody (ab68328) at 1/500 dilution

Lane 1:

Wild-type HEK-293T cell lysate at 20 µg

Lane 2:

Western blot - Human RTN3 (RTN3/HAP) knockout HEK-293T cell lysate (<a href='/products/cell-lysates/human-rtn3-rtn3-hap-knockout-hek-293t-cell-lysate-ab258647'>ab258647</a>) at 20 µg

Lane 3:

HeLa cell lysate at 20 µg

Lane 4:

U-87 MG cell lysate at 20 µg

Predicted band size: 113 kDa

Observed band size: 24 kDa

false

• WB

Unknown

Western blot - Anti-RTN3/HAP antibody (AB68328)

All lanes:

Western blot - Anti-RTN3/HAP antibody (ab68328) at 1/500 dilution

Lane 1:

RTN3/HAP transfected 293T cell lysate at 25 µg

Lane 2:

non transfected 293T cell lysate at 25 µg

Secondary

All lanes:

Goat Anti-Mouse IgG (H&L)-HRP Conjugate at 1/2500 dilution

Predicted band size: 113 kDa

Observed band size: 22 kDa

false
