Anti-RAGE 抗体 [EPR21171] - BSA and Azide free
Anti-RAGE antibody [EPR21171] - BSA and Azide free
- RabMAb
- Recombinant
- 詳細を見る
Be the first to review this product! Submit a review
|
(7 Publications)
Rabbit Recombinant Monoclonal RAGE antibody. Carrier free. Suitable for IP, Flow Cyt, WB, ICC/IF, IHC-Fr, IHC-P and reacts with Mouse, Human, Rat samples. Cited in 7 publications.
別名を表示する
RAGE, AGER, Advanced glycosylation end product-specific receptor, Receptor for advanced glycosylation end products
- IHC-P
Lab
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
This data was developed using ab216329, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of formalin fixed paraffin embedded human lung labelling RAGE with ab216329 at a concentration of 0.05µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.
ab216329 anti-RAGE antibody [EPR21171] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.
Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunohistochemical analysis of paraffin-embedded human lung tissue labeling RAGE with ab216329 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on epithelial cells of human lung (PMID : 19592063; PMID : 26472810) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- Flow Cyt
Supplier Data

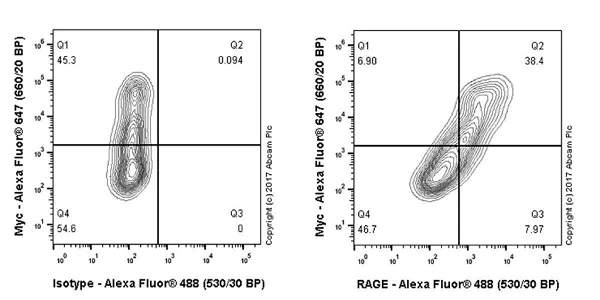

Flow Cytometry - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Flow cytometric analysis of 4% paraformaldehyde-fixed HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cells transfected with Myc-tagged RAGE expression vector labeling RAGE with ab216329 at 1/500 dilution (right panel) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (left panel). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/2000 dilution was used as the secondary antibody.
Fresh cells were surface-stained with ab172730 and ab216329 respectively. Then fixed with 2% PFA for 15min and intracellular stained with anti-Myc tag antibody (Y axis). Only Myc+ population give positive signal.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
- ICC/IF
Supplier Data
Immunocytochemistry/ Immunofluorescence - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100-permeabilized HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cells transfected with Myc-tagged RAGE expression vector labeling RAGE with ab216329 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing positive staining in HEK-293T cells transfected with Myc-tagged RAGE expression vector.
The nuclear counter stain is DAPI (blue). Myc-Tag is detected with Myc-Tag (9B11) Mouse mAb (Alexa Fluor® 647 Conjugate) (red) at 1/1000 dilution.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.
Negative control : Myc-transfected HEK-293T cells.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
- IHC-Fr
Supplier Data
Immunohistochemistry (Frozen sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen rat lung tissue labeling RAGE with ab216329 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Positive membrane staining on alveolar epithelial cells, negative on the bronchial epithelial cells on rat lung tissue section is observed (PMID : 15173891).
The nuclear counter stain is DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/1000 dilution.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunohistochemical analysis of paraffin-embedded rat lung tissue labeling RAGE with ab216329 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Mainly membranous staining on epithelial cells of rat lung (PMID : 19592063; PMID : 26472810) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IHC-Fr
Supplier Data
Immunohistochemistry (Frozen sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen mouse lung tissue labeling RAGE with ab216329 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Positive membrane staining on alveolar epithelial cells, negative on the bronchial epithelial cells on mouse lung tissue section is observed (PMID : 15173891).
The nuclear counter stain is DAPI (blue).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/1000 dilution.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling RAGE with ab216329 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Mainly membranous staining on epithelial cells of mouse lung (PMID : 19592063; PMID : 26472810) is observed. Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IP
Supplier Data
Immunoprecipitation - Anti-RAGE antibody [EPR21171] - BSA and Azide free (AB228861)
RAGE was immunoprecipitated from 0.35 mg of mouse lung lysate with ab216329 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab216329 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.
Lane 1 : Mouse lung lysate 10 μg (Input).
Lane 2 : ab216329 IP in mouse lung lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab216329 in mouse lung lysate.
Exposure time : 10 seconds.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab216329).
All lanes:
Immunoprecipitation - Anti-RAGE antibody [EPR21171] (<a href='/products/primary-antibodies/rage-antibody-epr21171-ab216329'>ab216329</a>)
Predicted band size: 42 kDa
Observed band size: 45 kDa,55 kDa
true
関連する標識済み抗体及び組成の異なる製品 (4)
-
Anti-RAGE antibody [EPR21171]
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-RAGE antibody [EPR21171]
-
578 PE
PE Anti-RAGE antibody [EPR21171]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-RAGE antibody [EPR21171]
Reactivity data
製品の詳細
ab228861 is the carrier-free version of ab216329.
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
出荷温度及び保存条件
製品の状態
精製方法
バッファー組成
出荷温度
短期保存温度
長期保存温度
保管に関する情報
補足情報
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
RAGE functions in the immune and inflammatory response where it mediates cell signaling that leads to cellular activation and the release of pro-inflammatory cytokines. It acts as part of complexes with different proteins contributing to cellular processes such as proliferation and migration. RAGE also plays roles in the regulation of oxidative stress and apoptosis impacting cellular health and survival. Researchers employ tools like 'anti-RAGE' antibodies and 'RAGER ELISA' assays to measure and study RAGE expression levels and its interactions in various experimental setups.
Pathways
RAGE is significantly involved in the NF-kB pathway and the MAPK signaling cascade. Its activation can lead to the release of NF-kB a transcription factor that plays an essential role in immune and inflammatory responses. RAGE interacts with proteins such as p38 MAPK leading to a cascade of events that regulate inflammation and stress responses. The signaling pathways involving RAGE are important in maintaining cell homeostasis and responding to cellular stressors and tools like 'anti-RAGE' and 'mouse RAGE' antibodies serve to elucidate these complex pathways further.
製品プロトコール
- Visit the General protocols
- Visit the Troubleshooting
- Download websiteProtocolBooklet|zh
ターゲットの情報
文献 (7)
Recent publications for all applications. Explore the full list and refine your search
International journal of molecular sciences 26: PubMed40565035
2025
Applications
Unspecified application
Species
Unspecified reactive species
Frontiers in immunology 15:1424332 PubMed39026673
2024
Applications
Unspecified application
Species
Unspecified reactive species
BMC immunology 23:42 PubMed36088289
2022
Applications
Unspecified application
Species
Unspecified reactive species
Translational oncology 17:101350 PubMed35091340
2022
Applications
Unspecified application
Species
Unspecified reactive species
Oncoimmunology 10:1874159 PubMed33628620
2021
Applications
Unspecified application
Species
Unspecified reactive species
Medical science monitor : international medical jo 25:9446-9457 PubMed31825949
2019
Applications
Unspecified application
Species
Unspecified reactive species
BioMed research international 2019:7304895 PubMed31886244
2019
Applications
Unspecified application
Species
Unspecified reactive species
Abcam product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
For licensing inquiries, please contact partnerships@abcam.com
