Anti-Rad51 抗体 [EPR4030(3)] - BSA and Azide free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

Immunohistochemistry (PFA-fixed paraffin-embedded sections) analysis of human colonic carcinoma tissue labelling with ab221796 at 0.54μg/mL. Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer pH 9). A HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody. Counterstained with hematoxylin.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cervix carcinoma tissue labelling Rad51 with purified ab133534 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133534).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was developed using ab133534, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 100% Methanol-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling RAD51 with ab133534 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed (ab150081) antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in HeLa cell line (shown in green).

The counterstain was observed in magenta.

Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed (ab150081) at 1/1000 dilution.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

Immunohistochemistry (PFA-fixed paraffin-embedded sections) analysis of human lung carcinoma tissue labelling with ab221796 at 0.54μg/mL. Heat mediated antigen retrieval was performed using ab92684 (Tris/EDTA buffer pH 9). A HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody. Counterstained with hematoxylin.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was developed using ab133534, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of HCT116 cells treated with 20 J/m² UV energy 24 hours after seeding, followed by a further 24-hour incubation prior to fixation. Cells were fixed with 4% PFA and permeabilized with 0.1% Triton X-100. Rad51 was labelled with ab133534 at 0.2 μg/ml (shown in green). ab303656 Anti-gamma H2A.X (phospho S139) antibody [N1-431] was used as a DNA damage counterstain at 0.2 μg/ml (shown in red). The secondary antibodies used were ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed and ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) preadsorbed, both used at a 1/1000 dilution (2 μg/ml). The image shows selected areas of overlapping foci. The nuclear counterstain was DAPI.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was produced using the same antibody clone but in a different formulation containing PBS, sodium azide, glycerol and BSA (ab133534).

Immunohistochemical analysis of formalin fixed paraffin embedded human testis labelling Rad51 with ab133534 at a concentration of 1 µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

ab133534 Anti-Rad51 antibody [EPR4030(3)] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)

• IP

Lab

Immunoprecipitation - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

ab133534 (purified) at 1/100 immunoprecipitating Rad51 in HEK-293 (human epithelial cell line from embryonic kidney) whole cell lysate.

Lane 1 (input) : HEK-293 whole cell lysate (10µg)

Lane 2 (+) : ab133534 + HEK-293 whole cell lysate.

Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab133534 in HEK-293 whole cell lysate.

For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133534).

All lanes:

Immunoprecipitation - Anti-Rad51 antibody [EPR4030(3)] (<a href='/products/primary-antibodies/rad51-antibody-epr40303-ab133534'>ab133534</a>)

Predicted band size: 36 kDa

Observed band size: 37 kDa

false

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was developed using ab133534, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 100% Methanol-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling RAD51 with ab133534 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed (ab150081) antibody at 1/1000 dilution (Green).

Confocal image showing nuclear staining in NIH/3T3 cell line (shown in green).

The counterstain was observed in magenta.

Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) was used to counterstain tubulin at 1/200 dilution (Magenta).

Secondary antibody only control : Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed (ab150081) at 1/1000 dilution.

• WB

Lab

Western blot - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was developed using ab133534, the same antibody clone in a different buffer formulation. Different batches of ab133534 were tested on HEK-293 (Human embryonic kidney epithelial cell) lysate at 2.1 µg/ml. 15 µg of lysate was loaded in each lane. Bands observed at 37 kDa.

All lanes:

Western blot - Anti-Rad51 antibody [EPR4030(3)] (<a href='/products/primary-antibodies/rad51-antibody-epr40303-ab133534'>ab133534</a>)

Predicted band size: 36 kDa

false

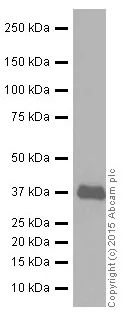

• WB

Lab

Western blot - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was produced using the same antibody clone but in a different formulation containing PBS, sodium azide, glycerol and BSA (ab133534).

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Rad51 antibody [EPR4030(3)] (<a href='/products/primary-antibodies/rad51-antibody-epr40303-ab133534'>ab133534</a>) at 1/10000 dilution

All lanes:

K562 (human chronic myelogenous leukemia cell line from bone marrow ) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 36 kDa

Observed band size: 37 kDa

false

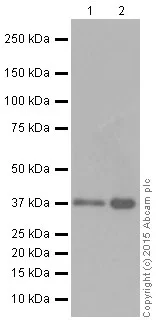

• WB

Lab

Western blot - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was produced using the same antibody clone but in a different formulation containing PBS, sodium azide, glycerol and BSA (ab133534).

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Rad51 antibody [EPR4030(3)] (<a href='/products/primary-antibodies/rad51-antibody-epr40303-ab133534'>ab133534</a>) at 1/20000 dilution

Lane 1:

HEK-293 (human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

Lane 2:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 36 kDa

Observed band size: 37 kDa

false

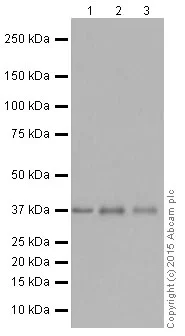

• WB

Lab

Western blot - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was produced using the same antibody clone but in a different formulation containing PBS, sodium azide, glycerol and BSA (ab133534).

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Rad51 antibody [EPR4030(3)] (<a href='/products/primary-antibodies/rad51-antibody-epr40303-ab133534'>ab133534</a>) at 1/10000 dilution

Lane 1:

C6 (rat glial tumor cell line) whole cell lysate at 20 µg

Lane 2:

Mouse spleen tissue lysate at 20 µg

Lane 3:

NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 36 kDa

Observed band size: 37 kDa

false

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Rad51 antibody [EPR4030(3)] - BSA and Azide free (AB221796)

This data was developed using ab133534, the same antibody clone in a different buffer formulation.

Intracellular Flow Cytometry analysis of A431 (human epidermoid carcinoma epithelial cell) labelling Rad51 with purified ab133534 at 1/200 (red). Cells were fixed with 4% paraformaldehyde. A Goat anti rabbit IgG (Alexa Fluor^® 488 ab150077 (1/2000) was used as the secondary antibody. Black - Isotype control, (ab172730) rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.
