PE Anti-Thymidine Kinase 1/TK1 抗体 [EPR3194]

• Flow Cyt (Intra)

Lab

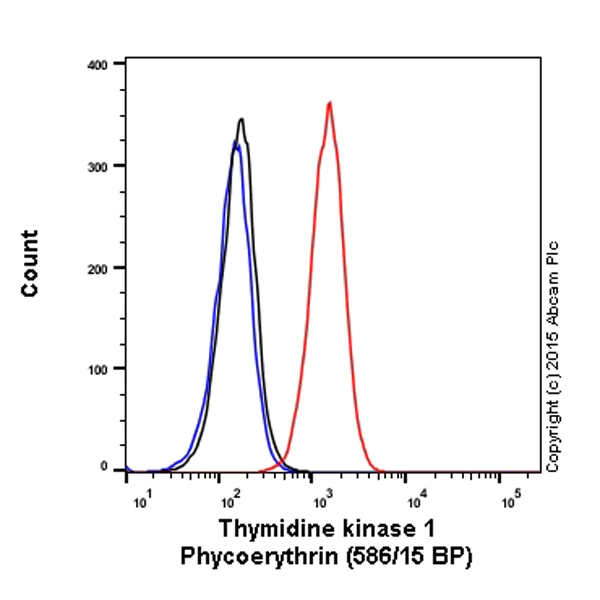

Flow Cytometry (Intracellular) - PE Anti-Thymidine Kinase 1/TK1 antibody [EPR3194] (AB208998)

Overlay histogram showing HeLa cells stained with ab208998 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab208998, 1/5000 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was rabbit IgG (monoclonal) Phycoerythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50mW Yellow-Green laser (561nm) and 586/15 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - PE Anti-Thymidine Kinase 1/TK1 antibody [EPR3194] (AB208998)

ab208998 staining Thymidine Kinase 1/TK1 in HeLa cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab208998 at 1/100 dilution (Pseudocolored in green) and ab195884, Rat monoclonal to Tubulin (Alexa Fluor^® 647), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
