Anti-PAX8 抗体 [SP348] - N-terminal

• mIHC

Lab

Multiplex immunohistochemistry - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Fluorescence multiplex immunohistochemical analysis of Human thyroid gland tissue (Formalin/PFA-fixed paraffin-embedded sections). Panel A : merged staining of anti-Thyroglobulin (ab151539, magenta; Opal™690), anti-Thyroid Peroxidase/TPO (ab109383, green; Opal™520) and anti-PAX8 (ab227707, red; Opal™570) on human thyroid gland. Panel B : anti-Thyroid Peroxidase/TPO stained on cytoplasm of follicular epithelial cells. Panel C : anti-PAX8 stained on nucleus of follicular epithelial cells. Panel D : anti-Thyroglobulin stained on colloid. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The section was incubated in three rounds of staining : in the order of ab151539 at 1/5000 dilution (0.167 μg/ml), ab109383 at 1/1500 dilution (0.072 μg/ml) , and ab227707 at 1/200 dilution (5.22 μg/ml) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. DAPI (blue) was used as a nuclear counter stain. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human uterus tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• Flow Cyt

Supplier Data

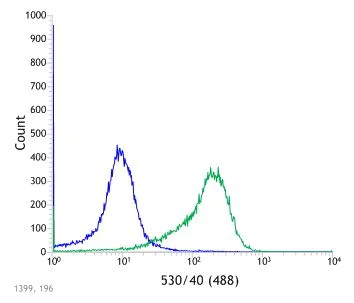

Flow Cytometry - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Flow Cytometry analysis of HL-60 (human promyelocytic leukemia cell line) cells, labeling PAX8 with ab227707 at 1/100 dilution (green) compared to a Rabbit IgG negative control (blue).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human thyroid tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human endometrial adenocarcinoma tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• Flow Cyt

Unknown

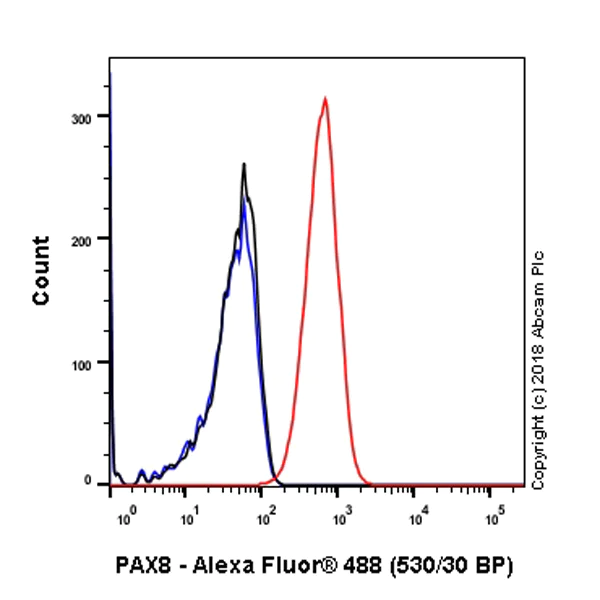

Flow Cytometry - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Flow Cytometry analysis of SK-OV-3 (human ovarian cancer epithelial cell) cells labeling PAX8 with purified ab227707 at 1 : 400 dilution (1.015 µg/ml) - Red. Cells were fixed with 4% paraformaldehyde . A Goat anti rabbit IgG (Alexa Fluor® 488, ab150081) secondary antibody was used at 1 : 2000 dilution. Isotype control - Rabbit monoclonal IgG (ab172730) - Black. Unlabeled control - Blue.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Immunocytochemistry/ Immunofluorescence analysis of SK-OV-3 (human ovarian cancer epithelial cell) cells labeling PAX8 with purified ab227707 at 1 : 50 (8.1 µg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 µg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human kidney tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human tonsil tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human ovarian adenocarcinoma tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human fallopian tube tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

Formalin-fixed, paraffin-embedded human renal cell carcinoma tissue stained for PAX8 using ab227707 at 1/100 dilution in immunohistochemical analysis.

• ChIC/CUT&RUN-seq

Lab

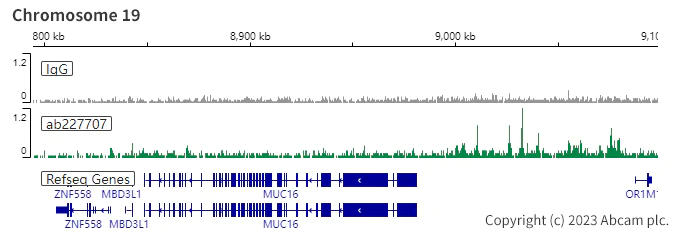

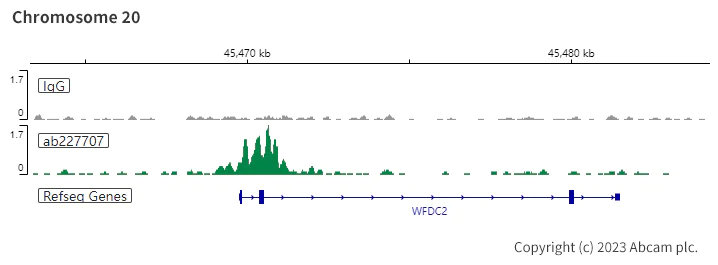

ChIC/CUT&RUN sequencing - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 NIH : OVCAR-3 (Human ovary adenocarcinoma epithelial cell) cells and 5 µg of ab227707 [SP348]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

• ChIC/CUT&RUN-seq

Lab

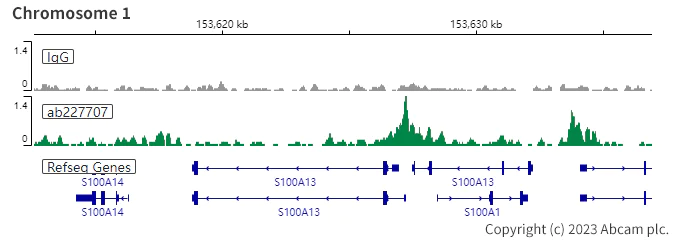

ChIC/CUT&RUN sequencing - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 NIH : OVCAR-3 (Human ovary adenocarcinoma epithelial cell) cells and 5 µg of ab227707 [SP348]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

• ChIC/CUT&RUN-seq

Lab

ChIC/CUT&RUN sequencing - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 NIH : OVCAR-3 (Human ovary adenocarcinoma epithelial cell) cells and 5 µg of ab227707 [SP348]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

• WB

Lab

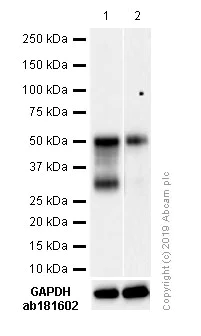

Western blot - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

All lanes:

Western blot - Anti-PAX8 antibody [SP348] - N-terminal (ab227707) at 0.398 µg/mL

Lane 1:

SK-OV-3 (human ovarian cancer epithelial cell) cell lysate at 20 µg

Lane 2:

human kidney tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 0.05 µg/mL

Predicted band size: 48 kDa

false

• WB

Supplier Data

Western blot - Anti-PAX8 antibody [SP348] - N-terminal (AB227707)

All lanes:

Western blot - Anti-PAX8 antibody [SP348] - N-terminal (ab227707) at 1/100 dilution

Lane 1:

PAX1 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 2:

PAX2 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 3:

PAX3 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 4:

PAX4 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 5:

PAX5 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 6:

PAX6 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 7:

PAX7 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 8:

PAX8 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 9:

PAX9 transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Lane 10:

Mock transfected HEK-293 (human epithelial cel line from embryonic kidney) cell lysate

Predicted band size: 48 kDa

false
