Anti-Ki67 抗体 [SP6]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

IHC image of ab16667 staining Ki67 in a section of formalin-fixed paraffin-embedded Human colon carcinoma tissue. The section incubated with ab16667 at 1/200 (0.145 μg/ml) dilution and ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880) was used as secondary antobody. Positive staining on human colon carcinoma. The section was incubated with ab16667 at 4°C overnight. The section was counterstained with haematoxylin. Heat mediated antigen retrieval was performed using ab93678 (citrate buffer, pH 6.0).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling Ki67 with ab16667 at 1/200 (0.145 µg/ml) followed by a ready to use LGoat Anti-Rabbit IgG H&L (HRP polymer) secondary antibody (ab214880). Low expression : positive staining only on proliferating cells (arrow) of human kidney. The section was incubated with ab16667 at 4°C overnight and counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Heat mediated antigen retrieval was performed using ab93678 (citrate buffer, pH 6.0).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of formalin fixed paraffin embedded human tonsil labelling Ki67 with ab16667 at 1/500 dilution. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with an OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was conducted for 32min with ULTRA cell conditioning solution (CC1 pH8.5). ab16667 anti Ki67 antibody was incubated at 37°C for 16min. Sections were counterstained is with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

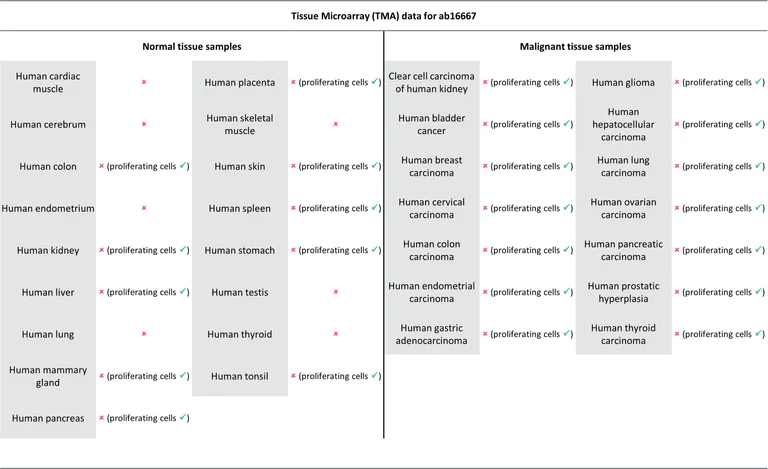

Tissue Microarrays stained for "Anti-Ki67 antibody [SP6]” using "ab16667" at 1/200 dilution (0.145 μg/ml) in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. Taking human colon tissue as an example, Ki67 is barely expressed or the expression level is very low in normal colon tissue, and the IHC test result is usually negative. While the expression of Ki67 can be upregulated in the proliferating cells of colon tissue, and the IHC test result could be positive. The sections were pre-treated using Heat mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0). The sections were incubated with ab16667 at +4°C overnight followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Hematoxylin was used as the counter stain.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of Paraffin-embedded sections Human tonsil tissue labelling Ki67 with ab16667 at 1/200 dilution, followed by a ready to use secondary Rapid DAB Detection System ab290116. Nuclear staining on human tonsil tissue is observed. Counter stained with Haematoxylin. Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ready to use Rapid DAB Detection System, ab290116. Heat mediated antigen retrieval was performed using ab208572 (Universal HIER antigen retrieval reagent) The section was incubated by Rapid DAB Detection System (ab290116) after antigen retrieval. The section was incubated with ab16667 in 5 mins at room temperature.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Ki67 antibody [SP6] (AB16667)

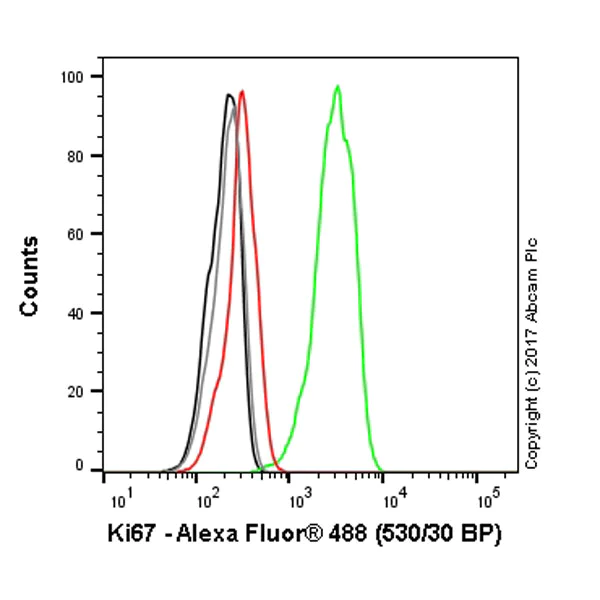

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized parental HAP1 (Wildtype control human chronic myelogenous leukemianear-haploid cell line) cells labelling Ki67 with ab16667 at 1/500 dilution (0.1ug) (Red) compared with a Rabbit monoclonal IgG (ab172730)(Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^® 488 ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Ki67 with ab16667 at 1/200 (0.145 µg/ml) followed by a ready to use LGoat Anti-Rabbit IgG H&L (HRP polymer) secondary antibody (ab214880). Low expression : positive staining only on proliferating cells (arrow) of human liver. The section was incubated with ab16667 at 4°C overnight and counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Heat mediated antigen retrieval was performed using ab93678 (citrate buffer, pH 6.0).

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Ki67 antibody [SP6] (AB16667)

Chromogenic multiplex immunohistochemical staining of FFPE normal human tonsil tissue. ab16667 anti-Ki67 DAB chromogen. ab16669 anti-CD3 epsilon purple chromogen and ab192847 anti-CD68 teal chromogen plus haematoxylin II counterstain. Chromogenic immunostaining was performed on a Roche Ventana Benchmark Ultra instrument. The section was deparaffinised and incubated with CC1 solution for 24min 100oC. Following this with 3 rounds of staining in the order of ab16667 (1/500 dilution), ab192847 (1/4000 dilution) and ab16669 (1/1000 dilution). Between rounds of staining antibody denaturation was conducted using Ultra CC2 solution for 8min at 100oC to avoid cross reactivity. Signal was developed with anti-rabbit HQ followed by anti-HQ HRP coupled with Chromomap DAB kit Discovery purple or Discovery teal chromogens and haematoxylin II counterstain.

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-Ki67 antibody [SP6] (AB16667)

Fluorescence multiplex immunohistochemical analysis of normal human tonsil tissue (formalin-fixed paraffin-embedded section).

Merged staining of anti-PD1 (ab237728; orange; Opal™520) anti-PDL1 (ab237726; green; Opal™540) anti-CD68 (ab192847; yellow; Opal™570) anti-CD3 epsilon (ab16669; red; Opal™620) anti-Ki67 (ab16667; light blue; Opal™650) and anti-PanCK (ab7753; grey; Opal™690).

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 7-color automation IHC kit (NEL821001KT Akoya Biosciences^®).

The section was incubated in six rounds of staining; in the order of ab237728 (1/500 dilution), ab237726 (1/500 dilution), ab192847 (1/300 dilution), ab16669 (1/300 dilution), ab16667 (1/200 dilution) and ab7753 (1/200 dilution); each using a separate fluorescent tyramide signal amplification system.

Sodium citrate antigen retrieval (Leica ER1 pH6.0 30 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round to avoid any cross-reactivity.

DAPI (dark blue) was used as a nuclear counter stain.

Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra Polaris.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Ki67 antibody [SP6] (AB16667)

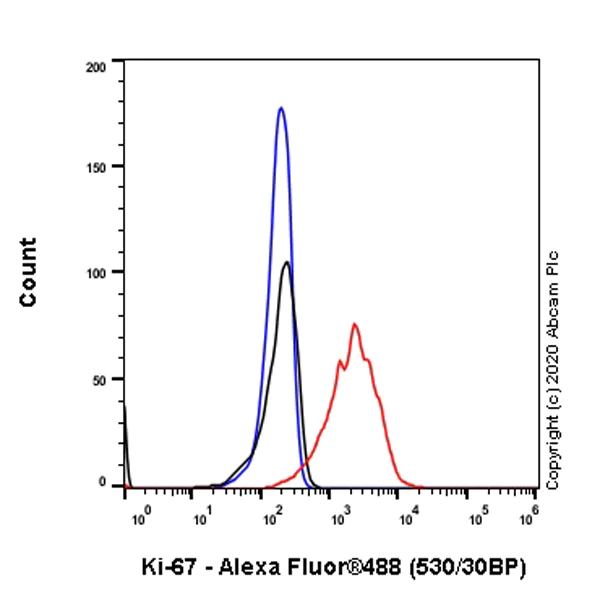

Flow cytometry analysis of 4% paraformaldehyde fixed 90% methanol permeabilized parental Isotype (Left) / HeLa (human cervix adenocarcinoma epithelial cell) treated with 100ng/mL nocodazole for 24 hours (Middle) / Untreated HeLa (Right) cells labelling Ki67 with ab16667 at 1/5000 dilution (0.01ug) Middle and Right compared with a Rabbit monoclonal IgG (ab172730)  (right) isotype control. A Goat Anti-Rabbit IgG (Alexa Fluor^® 488 ab150081) at 1/5000 dilution was used as the secondary antibody. Cells were co-stained with DRAQ5 to differentiate cell cycle phase.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of Paraffin-embedded sections Human colon tissue labelling Ki67 with ab16667 at 1/200 dilution, followed by a ready to use secondary Rapid DAB Detection System ab290116. Nuclear staining on human colon tissue is observed. Counter stained with Haematoxylin. Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ready to use Rapid DAB Detection System, ab290116. Heat mediated antigen retrieval was performed using ab208572 (Universal HIER antigen retrieval reagent) The section was incubated by Rapid DAB Detection System (ab290116) after antigen retrieval. The section was incubated with ab16667 in 5 mins at room temperature.

• IHC-P

AbReview80142****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of formaldehyde fixed human pancreas staining with ab16667 at 1/100 dilution. Secondary antibody used was HRP BOND Refine Detection kit. Blocking was done with 5% serum for 1 hour at 20 °C. The sample was incubated with the primary antibody for 18 hours at 4°C with 1% BSA. Antigen retrieval method was heat mediated 10mm sodium citric buffer, PH 6

This image is courtesy of an anonymous Abreview

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human tonsil labelling PD1 with ab243644 at 1/500 dilution (1.02 µg/mL) (D), Ki67 with ab16667 at 1/200 dilution (0.15 μg/ml) (B) and PD-L1 with ab228462 at 1/100 dilution (0.52 μg/ml) (C). Opal Polymer HRP Ms + Rb was used as a secondary antibody, and DAPI was used for a nuclear counter stain. Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Panel A : merged staining of anti-Ki67 (magenta; Opal™690), anti-PD-L1 (red; Opal™570) and anti-PD1 (green; Opal™520) on human tonsil. Panel B : anti-Ki67 stained on nucleus of proliferating cells. Panel C : anti-PD-L1 stained on membrane of cells involved in T cell inhibition. Panel D : anti-PD1 stained on antigen-stimulated T cells. The section was incubated in three rounds of staining : in the order of ab16667 for 10 mins, ab243644 for 30 mins and ab228462 for 10 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling Ki67 with ab16667 at 1/200 (0.145 µg/ml) followed by a ready to use LGoat Anti-Rabbit IgG H&L (HRP polymer) secondary antibody (ab214880). Low expression : positive staining only on proliferating cells (arrow) of mouse liver. The section was incubated with ab16667 at 4°C overnight and counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Heat mediated antigen retrieval was performed using ab93678 (citrate buffer, pH 6.0).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling Ki67 with ab16667 at 1/200 (0.145 µg/ml) followed by a ready to use LGoat Anti-Rabbit IgG H&L (HRP polymer) secondary antibody (ab214880). Low expression : positive staining only on proliferating cells (arrow) of mouse kidney. The section was incubated with ab16667 at 4°C overnight and counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Heat mediated antigen retrieval was performed using ab93678 (citrate buffer, pH 6.0).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

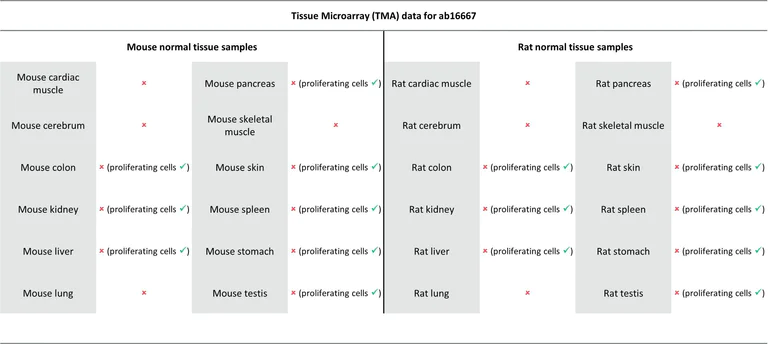

Tissue Microarrays stained for "Anti-Ki67 antibody [SP6]” using "ab16667" at 1/200 dilution (0.145 μg/ml) in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using ab93678 (citrate buffer, pH 6.0). The sections were incubated with ab16667 at +4°C overnight followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer) (ab214880). Hematoxylin was used as the counter stain.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

IHC image of ab16667 staining Ki67 in a section of formalin-fixed paraffin-embedded Mouse spleen tissue. The section was pre-treated using heat mediated antigen retrieval with ab93678 (citrate buffer pH 6.0). The section was then incubated with ab16667 at 1/200 (0.156 μg/mL) dilution and detected using a ready to use Goat Anti-Rabbit IgG H&L (HRP) antibody. Nuclear staining on mouse spleen.The section was incubated with ab16667 overnight at +4°C. DAB was used as the chromogen. The section was then counterstained with haematoxylin.

• WB

Lab

Western blot - Anti-Ki67 antibody [SP6] (AB16667)

Western blot : Anti-MKI67 antibody [SP6] (ab16667) staining at 1/500 dilution, shown in green; Mouse anti-CANX [CANX/1543] (ab238078) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab16667 was shown to bind specifically to MKI67. A band was observed at 359 kDa in wild-type A549 cell lysates with no signal observed at this size in MKI67 knockout cell line. To generate this image, wild-type and MKI67 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Ki67 antibody [SP6] (ab16667) at 1/500 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

MKI67 knockout A549 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Observed band size: 359 kDa

false

• WB

Lab

Western blot - Anti-Ki67 antibody [SP6] (AB16667)

Lanes 1 - 3 : Merged signal (red and green). Green - ab16667 observed at 359 kDa. Red - loading control, ab130007 observed at 125 kDa.

ab16667 was shown to react with Ki67 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab255407 (knockout cell lysate ab263762) was used. Wild-type and Ki67 knockout samples were subjected to SDS-PAGE. ab16667 and Anti-Vinculin antibody [VIN-54] (ab130007) were incubated overnight at 4°C at 1 in 100 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Ki67 antibody [SP6] (ab16667) at 1/100 dilution

Lane 1:

Ramos cell lysate at 20 µg

Lane 2:

Wild-type HeLa cell lysate at 20 µg

Lane 3:

Western blot - Human MKI67 (Ki67) knockout HeLa cell line (<a href='/products/cell-lines/human-mki67-ki67-knockout-hela-cell-line-ab255407'>ab255407</a>) at 20 µg

Lane 3:

Western blot - Human MKI67 (Ki67) knockout HeLa cell lysate (<a href='/products/cell-lysates/human-mki67-ki67-knockout-hela-cell-lysate-ab263762'>ab263762</a>) at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Predicted band size: 358 kDa

Observed band size: 124 kDa,359 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

IHC image of ab16667 staining Ki67 in a section of formalin-fixed paraffin-embedded Human tonsil tissue. The section was pre-treated using heat mediated antigen retrieval with ab93678 (citrate buffer pH 6.0). The section was then incubated with ab16667 at 1/200 (0.156 μg/ml) dilution and detected using ready to use Goat Anti-Rabbit IgG H&L (HRP) antibody. Nuclear staining on human tonsil is observed. The section was incubated with ab16667 overnight at +4°C. DAB was used as the chromogen. The section was then counterstained with haematoxylin.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

ab16667 staining Ki67 in wild-type HAP1 cells (top panel) and Ki67 knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol for 5 minutes, permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1 hour. The cells were then incubated with ab16667 at 1/250 dilution and ab195889 at 1/250 dilution (shown in pseudo colour red) overnight at +4°C, followed by a further incubation at room temperature for 1 hour with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) secondary antibody at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

This image was generated from the hybridoma version.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

Immunohistochemical analysis of formalin-fixed paraffin-embedded human tonsil sections labeling Ki67 with ab16667 at 1/200 dilution (0.156 μg/mL).

Image A :
Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer)
Human tonsil tissue incubated with ab16667 overnight at +4°C.
Heat mediated antigen retrieval using ab93678 (citrate buffer pH 6.0).
Nuclear staining on human tonsil. The section was incubated with ab16667 overnight at +4°C.

Image B :
Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection)
Human tonsil tissue incubated with ab16667 on a Leica Biosystems BOND^® RX instrument.
Heat mediated antigen retrieval with Citrate buffer (pH 6.0 epitope retrieval solution2) for 20 mins.

• IHC-P

Collaborator31270****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

ab16667 staining Ki67 in human testis by Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections). Tissue was fixed with formaldehyde and a heat mediated antigen retrieval step was performed using citrate buffer. Samples were then blocked with 1% BSA for 10 minutes at 21°C followed by incubation with the primary antibody for 2 hours at 1/100. A biotin-conjugated goat anti-rabbit polyclonal was used as secondary antibody at a 1/250 dilution.

This image was generated from the hybridoma version.

Image Courtesy of Carl Hobbs, King College London, U.K.

• ICC/IF

AbReview57387****

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

Immunocytochemistry/ Immunofluorescence analysis of human cardiac stem cells labeling Ki67 with ab16667 at 1/250 dilution. Cells were fixed in paraformaldehyde and permeabilized with Triton x-100 0.01%. Cells were blocked in BSA for 1 hour at room temperature. A polyclonal chicken anti-rabbit Alex Fluor^® 488 secondary antibody was used at 1/500 dilution.

This image was generated from the hybridoma version.

This image is courtesy of an anonymous abreview.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

ab16667 staining of Ki67 in a HCT116 cell spheroid. The cells were fixed with 100% methanol (5 min) permeabilised with 0.5% Triton X-100 for 1h and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween overnight at room temperature. The spheroids were then incubated overnight at room temperature with ab16667 at 2 μg/ml and ab7291 Mouse monoclonal [DM1A] to alpha Tubulin at 2 μg/ml. DAPI was used as nuclear counterstain (shown in blue). As secondary antibodies ab150081 Goat anti-Rabbit (Alexa Fluor^® 488) (shown in green) and ab150120 Goat anti-Mouse (Alexa Fluor^® 594) (shown in magenta) were used incubated overnight at room temperature. All permeabilization blocking and antibody incubation steps were performed using a rotary shaker.

Image was acquired with a high-content analyser (Operetta CLS Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

The antibody ab16667 also worked using 4% formaldehyde fixation (10 min).

• ICC/IF

AbReview20391****

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

ab16667 staining Ki67 - Proliferation Marker in human HEp-2 cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde and permeabilized with Triton X-100 0.25% in PBS. Samples were incubated with primary antibody (1/50 in DPBS) for 1 hour at 21°C. An Atto488-conjugated Donkey anti-rabbit polyclonal (1/50) was used as the secondary antibody.

This image was generated from the hybridoma version.

This image is courtesy of an Abreview submitted by Peter Zentis

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ki67 antibody [SP6] (AB16667)

IHC image of ab16667 staining Ki67 in a section of formalin-fixed paraffin-embedded Rat spleen tissue. The section was pre-treated using heat mediated antigen retrieval with (citrate buffer pH 6.0). The section was then incubated with ab16667 1/200 (0.156 μg/mL) dilution and detected using ready to use Goat Anti-Rabbit IgG H&L (HRP) antibody. Nuclear staining on rat spleen. The section was incubated with ab16667 overnight at +4°C. DAB was used as the chromogen. The section was then counterstained with haematoxylin.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Ki67 antibody [SP6] (AB16667)

Overlay histogram showing HAP1 wildtype (green line) and HAP1-MKI67 knockout cells (red line) stained with ab16667. The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab16667 1/1000 dilution) for 30 min at 22°C. The secondary antibody used wasGoat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed (ab150081) secondary antibodyat 1/2000 dilution for 30 min at 22°C.A Rabbit IgG isotype control antibody (ab172730) was used at the same concentration and conditions as the primary antibody (HAP1 wildtype - black line HAP1-MKI67 knockout - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter. This image was generated from the hybridoma version.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

Immunofluorescent analysis of 100% methanol-fixed, None permeabilized parental HAP1 cells labelling Ki67 with ab16667 at 1/1000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (2 µg/mL) (Green). Confocal image showing nucleolar staining in parental HAP1cell line ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (2.5 µg/mL) (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1000 dilution (2 µg/mL).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Ki67 antibody [SP6] (AB16667)

Immunofluorescent analysis of 100% methanol-fixed None permeabilized HeLa cells labelling Ki67 with ab16667 at 1/1000 dilution followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (2 µg/mL) (Green). Confocal image showing nucleolar staining in HeLa cell line ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (2.5 µg/mL) (Red). The Nuclear counterstain was DAPI (Blue).Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1000 dilution (2 µg/mL).
