Anti-Hsp60 抗体

• WB

Unknown

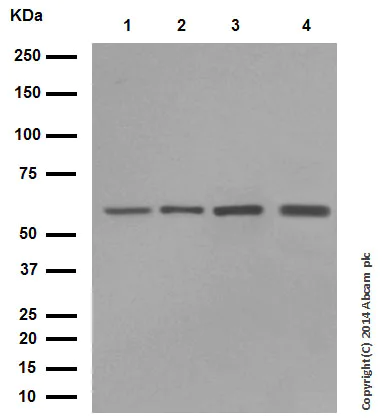

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Blocking Buffer : 5% NFDM/TBST

Dilution Buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798) at 1/20000 dilution

Lane 1:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse heart tissue lysate at 20 µg

Lane 3:

Mouse spleen tissue lysate at 20 µg

Lane 4:

Rat heart tissue lysate at 10 µg

Secondary

All lanes:

HRP conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

false

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

IHC image of Hsp60 staining in a section of formalin-fixed paraffin-embedded normal human liver* performed on a Leica Biosystems BOND® RX instrument. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab46798, 1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody. For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times. *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• IHC-P

PubMed

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Unpurified ab46798 staining Hsp60 from human colon tissue by immunohistochemistry (formalin/PFA-fixed paraffin-embedded sections). Cells were formaldehyde fixed prior to blocking in 10% serum for 2 hours at 21°C. The primary antibody was diluted 1/500 and incubated with the sample for 2 hours at 21°C. Alexa fluor® 594 goat polyclonal, diluted 1/5000, was used as the secondary.

This image is courtesy of an Abreview submitted by Nicole Schechter Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

ab46798 staining Hsp60 in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab46798 at 1µg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control. Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 488), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor^® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour magenta). Nuclear DNA was labelled with DAPI (shown in blue).

Also suitable in cells fixed with 4% paraformaldehyde (10 min).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunohistochemical staining of paraffin embedded human lung adenocarcinoma with purified ab46798 at a working dilution of 1 in 100. The secondary antibody used is ab97051 Goat Anti-Rabbit IgG H&L (HRP) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunohistochemical staining of paraffin embedded human cervical carcinoma with purified ab46798 at a working dilution of 1 in 100. The secondary antibody used is ab97051 Goat Anti-Rabbit IgG H&L (HRP) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• ICC

AbReview81189****

Immunocytochemistry - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunocytochemistry analysis of paraformaldehyde-fixed 0.3% Triton X permeabilized HeLa FlipIn Cell line staining with ab46798 at 1/200 dilution. Secondary antibody was Alexa fluor™ 488 goat anti-rabbit IgG H+L at 1/700 dilution. Samples were incubated with the primary antibody with blocking buffer (5% FBS in PBS) for 2 hours at 24°C. Blocking was done using 5% serum for 1 hour at 24°C.

This image is courtesy of an Abreview submitted by Suleyman Bozkurt

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

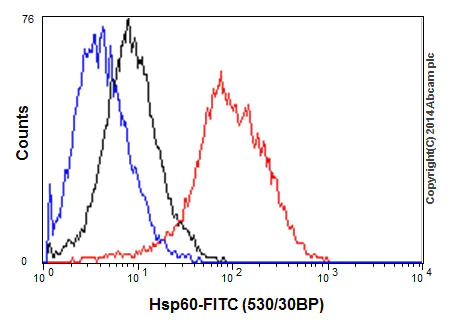

Overlay histogram showing HeLa cells fixed in 2% PFA and stained with purified ab46798 at a dilution of 1 in 150 (red line). The secondary antibody used was FITC goat anti-rabbit at a dilution of 1 in 150. Rabbit monoclonal IgG was used as an isotype control (black) and cells without incubation with the antibody were used as a negative control (blue line).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunohistochemical analysis of paraffin-embedded human breast adenocarcinoma using unpurified ab46798 at 1/250 dilution.

• IP

Unknown

Immunoprecipitation - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

ab46798 (purified) at 1/40 immunoprecipitating Hsp60 in MCF7 (Lane 1). Lane 2 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

All lanes:

Immunoprecipitation - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798)

Predicted band size: 61 kDa

Observed band size: 60 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunohistochemical staining of paraffin embedded mouse cardiac muscle with purified ab46798 at a working dilution of 1 in 100. The secondary antibody used is ab97051 Goat Anti-Rabbit IgG H&L (HRP) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Immunohistochemical staining of paraffin embedded rat kidney with purified ab46798 at a working dilution of 1 in 100. The secondary antibody used is ab97051 Goat Anti-Rabbit IgG H&L (HRP) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• WB

Unknown

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Secondary antibody - anti-rabbit HRP (ab6721)

All lanes:

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798) at 1/50000 dilution

All lanes:

Western blot - T-47D whole cell lysate (<a href='/products/cell-lysates/t-47d-whole-cell-lysate-ab14899'>ab14899</a>) at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab6721'>ab6721</a>) at 1/2000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

false

• WB

Unknown

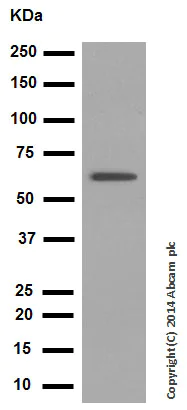

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Blocking Buffer : 5% NFDM/TBST

Dilution Buffer : 5% NFDM/TBST

All lanes:

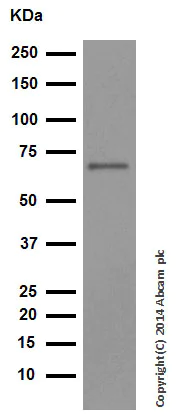

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798) at 1/20000 dilution

All lanes:

T47-D cell lysate at 10 µg

Secondary

All lanes:

HRP conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

false

• WB

Unknown

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Blocking Buffer : 5% NFDM/TBST

Dilution Buffer : 5% NFDM/TBST

All lanes:

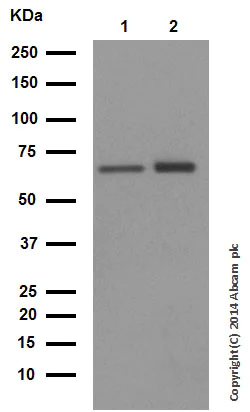

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798) at 1/50000 dilution

Lane 1:

MCF7 cell lysate at 20 µg

Lane 2:

SW480 cell lysate at 20 µg

Secondary

All lanes:

HRP conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

false

• WB

Unknown

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (AB46798)

Blocking Buffer : 5% NFDM/TBST

Dilution Buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-Hsp60 antibody - Mitochondrial Marker (ab46798) at 1/50000 dilution

All lanes:

Pig heart tissue lysate at 20 µg

Secondary

All lanes:

HRP conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 61 kDa

Observed band size: 60 kDa

false
