Anti-FOXP1 抗体 [SP133] - C-terminal

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

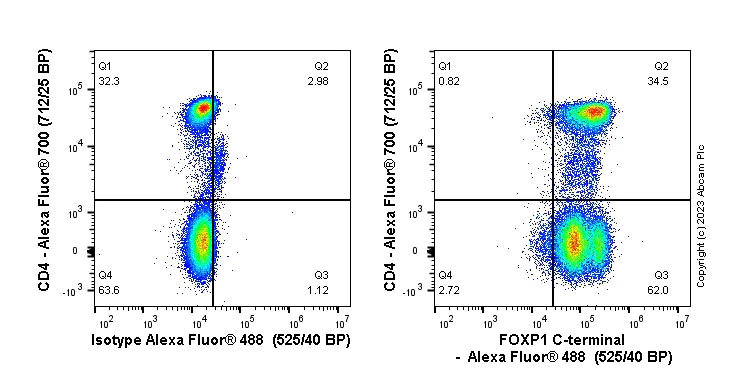

Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab227649 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (left). Cells were fixed and permeabilised with BD Cytofix/Cytoperm™ for 20 min. PBMCs were incubated for 30 min at 4°C in 1x PBS containing 10 μg/ml human IgG and 10 % normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab227649 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (1x 106 in 100 μl at 0.2 μg/ml (1/10050)) for 30 min at 4°C . The cells were simultaneously stained with CD4.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 4°C

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable cells.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Formalin-fixed, paraffin-embedded human tonsil tissue stained for FOXP1 using ab227649 at 1/100 dilution in immunohistochemical analysis.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

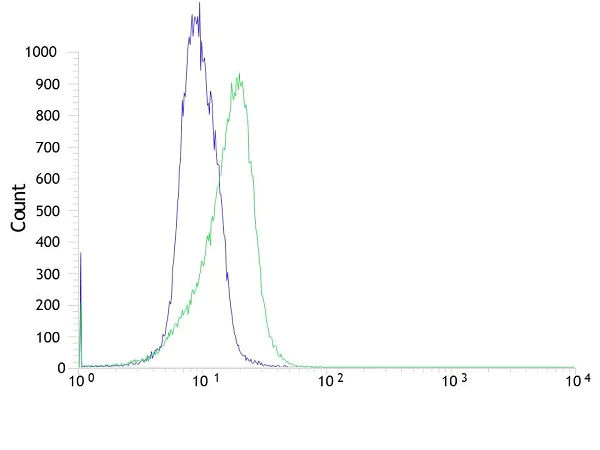

Flow cytometric analysis of MOLT-4 (human lymphoblastic leukemia cell line) cell line labeling FOXP1 with ab227649 at 1/100 dilution (green) compared with a negative control of rabbit IgG (blue).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human tonsil tissue sections labeling FOXP1 with ab227649 at 1/100 dilution (2.40 µg/ml). Heat mediated antigen retrieval was performed Heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

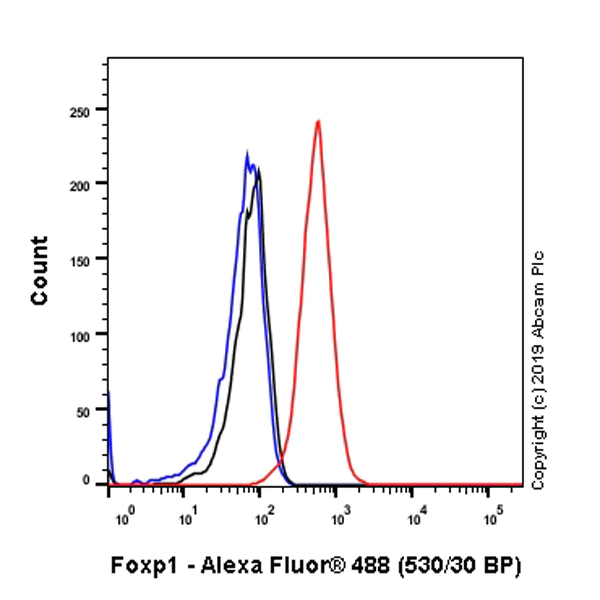

Flow cytometry analysis of HepG2 (Human hepatocellular carcinoma epithelial cell) labeling FOXP1 with purified ab227649 at 1/20 dilution (12 μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as a secondary antibody. Isotype control -Rabbit monoclonal IgG (ab172730) / Black. Unlableled control -Unlabelled cells / blue.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Mouse colon tissue sections labeling FOXP1 with ab227649 at 1/400 dilution (0.60 µg/ml). Heat mediated antigen retrieval was performed Heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Rat colon tissue sections labeling FOXP1 with ab227649 at 1/400 dilution (0.60 µg/ml). Heat mediated antigen retrieval was performed Heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Immunohistochemistry (Frozen) analysis of rat cerebrum tissue section labeling FOXP1 with purified ab227649 at 1/25 (9.6 μg/ml). Sections were fixed in 4% paraformaldehyde and permeabilized with 0.2% Triton X-100. Antigen retrieval was Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Goat anti rabbit IgG (Alexa Fluor ^®488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

Immunohistochemistry (Frozen) analysis of rat cerebral cortex tissue section labeling FOXP1 with purified ab227649 at 1/25 (9.6 μg/ml). Sections were fixed in 4% paraformaldehyde and permeabilized with 0.2% Triton X-100. Antigen retrieval was Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• WB

Supplier Data

Western blot - Anti-FOXP1 antibody [SP133] - C-terminal (AB227649)

All lanes:

Western blot - Anti-FOXP1 antibody [SP133] - C-terminal (ab227649) at 1/25 dilution

All lanes:

MCF7 (human breast adenocarcinoma cell line) cell lysate

Predicted band size: 75 kDa
