FITC Anti-NeuN 抗体 [EPR12763] - Neuronal Marker

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - FITC Anti-NeuN antibody [EPR12763] - Neuronal Marker (AB223994)

ab223994 staining NeuN in B35 cells. The cells were fixed with 4% PFA (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab223994 at 1/100 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - FITC Anti-NeuN antibody [EPR12763] - Neuronal Marker (AB223994)

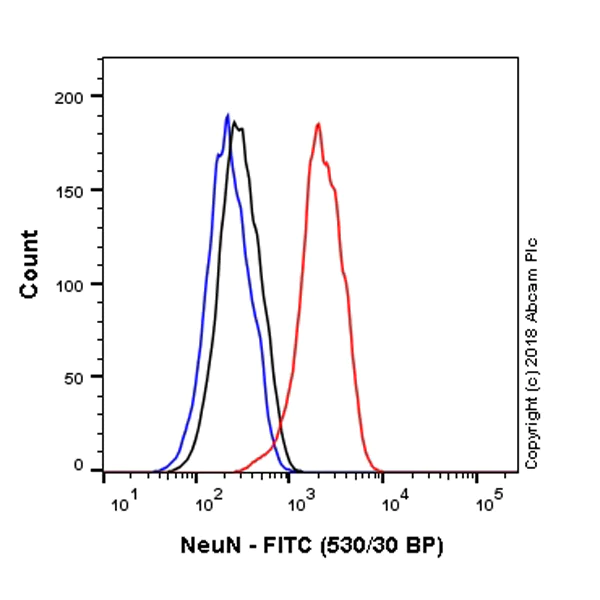

Overlay histogram showing PC12 cells stained with ab223994 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab223994, 1/50 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) FITC (ab223339) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-NeuN antibody [EPR12763] - Neuronal Marker (AB223994)

ab223994 staining NeuN in NGF-differentiated PC-12 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab223994 at 1/100 dilution (shown in green) and Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594) ab195889, at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
