FITC Anti-alpha smooth muscle Actin 抗体 [1A4]

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-alpha smooth muscle Actin antibody [1A4] (AB8211)

ab8211 staining alpha smooth muscle Actin in wild-type HeLa cells (top panel) and ACTA2 knockout HeLa cells (bottom panel). The cells were fixed with 100% methanol (5 min) then permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab8211 at 5μg/ml concentration and ab195884 (Rat monoclonal to Tubulin - Alexa Fluor^® 647) at 1/100 dilution overnight at 4°C. Nuclear DNA was labelled in blue with DAPI.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-alpha smooth muscle Actin antibody [1A4] (AB8211)

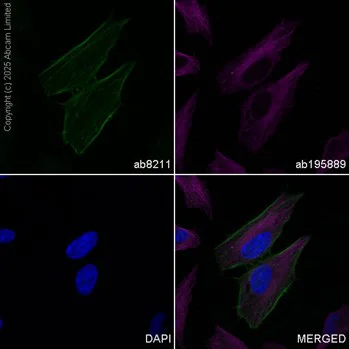

Immunofluorescent analysis of 14% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling alpha smooth muscle Actin with ab8211 at 1/50 dilution (Green).

Confocal image showing cytoplasmic staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-alpha smooth muscle Actin antibody [1A4] (AB8211)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling alpha smooth muscle Actin with ab8211 at 1/50 dilution (Green).

Confocal image showing cytoplasmic staining in NIH/3T3 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-alpha smooth muscle Actin antibody [1A4] (AB8211)

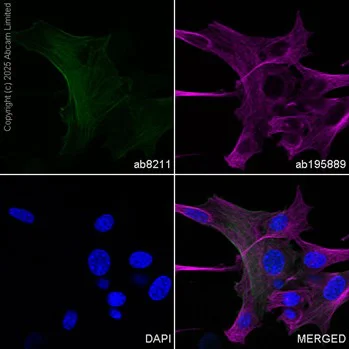

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SV40LT-SMC (rat SV40 transfected aortic smooth muscle cell) cells labelling alpha smooth muscle Actin with ab8211 at 1/50 dilution (Green).

Confocal image showing cytoplasmic staining in SV40LT-SMC cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Magenta).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - FITC Anti-alpha smooth muscle Actin antibody [1A4] (AB8211)

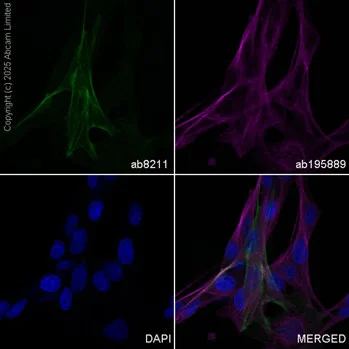

ab8211 staining alpha smooth muscle Actin in SV40LT-SMC cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab8211 at a 1/100 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at a 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This product also gave a positive signal under the same testing conditions in SV40LT-SMC cells fixed with 4% formaldehyde (10 min).
