Anti-DGKZ/DGK-zeta 抗体 [EPR22040-72] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

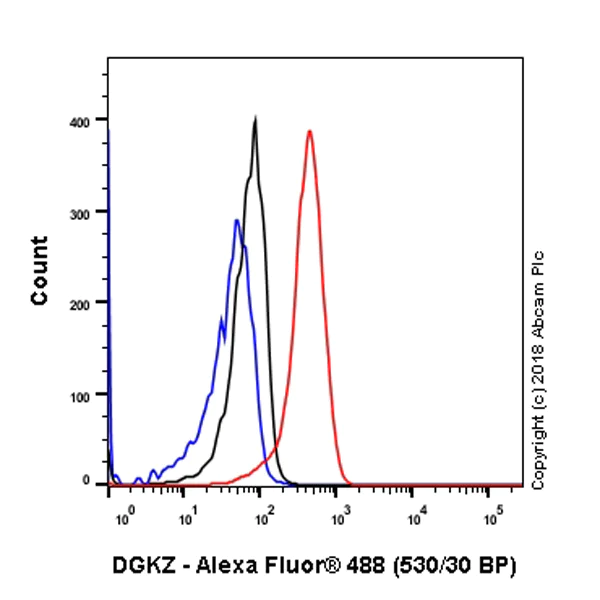

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilzedJurkat (human T cell leukemia cell line from peripheral blood) cell line labeling DGKZ/DGK-zeta with ab239080 at 1/600 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730, Black) isotype control, and an unlabeled control (Cell without incubation with primary antibody and secondary antibody, Blue).

Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 wasused as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

Immunohistochemical analysis of paraffin-embedded human cerebellum tissue labeling DGKZ/DGK-zeta with ab239080 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and nuclear staining on Purkinje cells of human cerebellum (PMID : 14511325) (PMID : 24119575) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling DGKZ/DGK-zeta with ab239080 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic Cytoplasmic staining on subset of immune cells in human tonsil (PMID : 24573202) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

• IP

Unknown

Immunoprecipitation - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

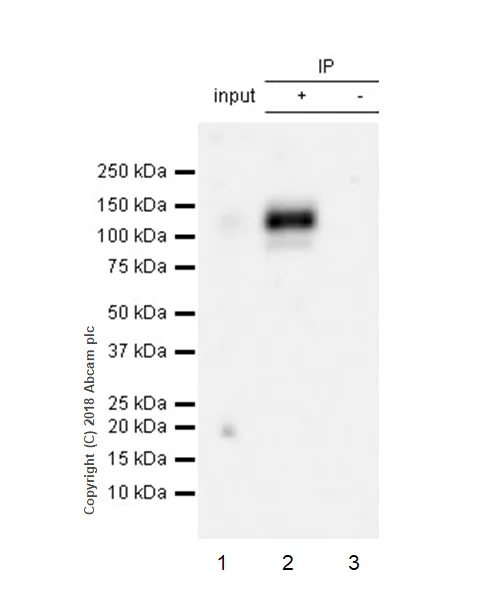

DGKZ/DGK-zeta was immunoprecipitated from 0.35 mg of Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate with ab239080 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab239080 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.
Lane 1 : Jurkat whole cell lysat 10 μg (input).
Lane 2 : ab239080 IP in Jurkat whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab239080 in Jurkat whole cell lysate (-).

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 15 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

All lanes:

Immunoprecipitation - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] (<a href='/products/primary-antibodies/dgkz-dgk-zeta-antibody-epr22040-72-ab239080'>ab239080</a>)

Predicted band size: 124 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

Immunohistochemical analysis of paraffin-embedded mouse brain tissue labeling DGKZ/DGK-zeta with ab239080 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and nuclear staining on neurons of mouse brain (PMID : 14511325) (PMID : 24119575) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

Immunohistochemical analysis of paraffin-embedded rat brain tissue labeling DGKZ/DGK-zeta with ab239080 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic staining on neurons of rat brain (PMID : 14511325) (PMID : 24119575) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab239080).

• mIHC

Lab

Multiplex immunohistochemistry - Anti-DGKZ/DGK-zeta antibody [EPR22040-72] - BSA and Azide free (AB239792)

Fluorescence multiplex immunohistochemical analysis of mouse cerebellum (formalin-fixed paraffin-embedded section).

Panel A : merged staining of anti-GABRA6 (magenta; Opal™690), anti-KCNA (green; Opal™520) and anti-DGKZ (gray; Opal™570) on mouse cerebellum.
Panel B : anti-GABRA6 staining granule cells in mouse cerebellum.
Panel C : anti-KCNA staining basket cells in mouse cerebellum.
Panel D : anti-DGKZ staining Purkinje cells in mouse cerebellum.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab300069 at a 1/500 dilution, ab313624 at a 1/5000 and ab239080 at a 1/5000 dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
