Anti-CD16+CD32 抗体 [EPR23501-203]
Anti-CD16+CD32 antibody [EPR23501-203]
- BOND RX™ Validated
- RabMAb
- Recombinant
- 20ul selling size
- 詳細を見る
Be the first to review this product! Submit a review
|
(18 Publications)
Anti-CD16+CD32 antibody [EPR23501-203] (ab223200) is a rabbit monoclonal antibody detecting CD16+CD32 in Western Blot, Flow Cytometry, IP, IHC-P, ICC/IF. Suitable for Mouse.
- Biophysical QC for unrivalled batch-batch consistency
別名を表示する
CD16, Low affinity immunoglobulin gamma Fc region receptor III, IgG Fc receptor III, Fc-gamma RIII, FcRIII, Fcgr3
- Flow Cyt
Unknown

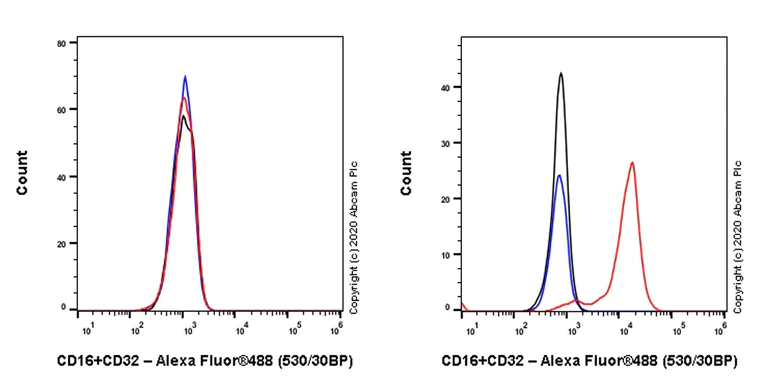

Flow Cytometry - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Flow cytometric analysis of mouse splenocytes cells labelling CD16+CD32 with ab223200 at 1/500 dilution (Right) compared with a Rabbit monoclonal IgG (ab172730) isotype control (Left).
Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.
Gated on viable cells.
- IHC-P
Unknown
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Immunohistochemical analysis of paraffin-embedded mouse colon carcinoma tissue labeling CD16+CD32 with ab223200 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on the stroma in mouse colon carcinoma. The section was incubated with ab223200 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- Flow Cyt
Unknown
Flow Cytometry - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Flow cytometric analysis of bEnd.3 (mouse brain endothelioma, Left) / J774A.1 (mouse reticulum cell sarcoma monocyte macrophage, Right) cells labelling CD16+CD32 with ab223200 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) isotype control (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.
Negative control : bEnd.3 (PMID : 23911392).
Gated on viable cells.
- IHC-P
Unknown

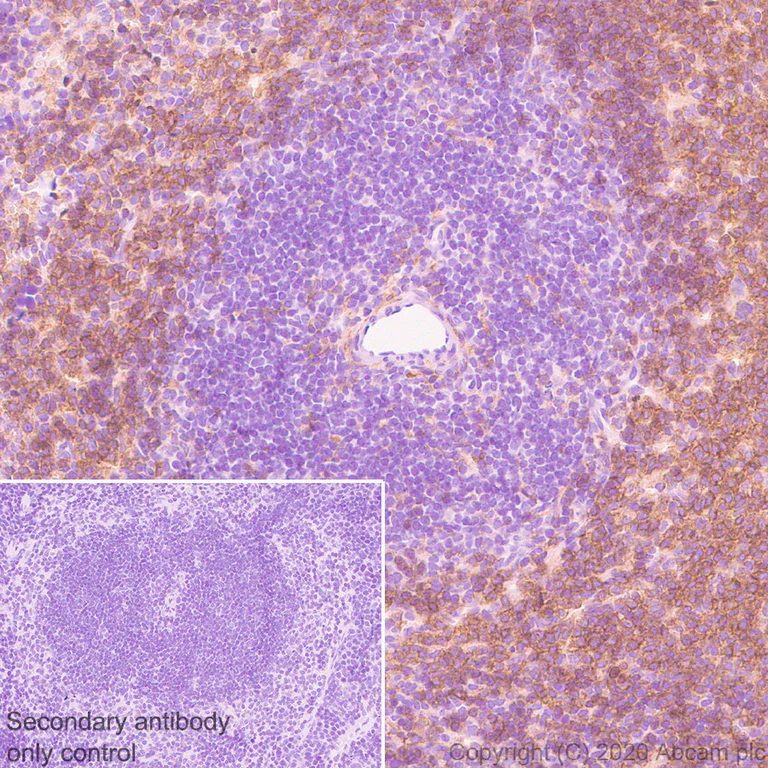

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD16+CD32 with ab223200 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic and membranouse staining on mouse spleen (PMID : 22618994). The section was incubated with ab223200 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- ICC/IF
Unknown

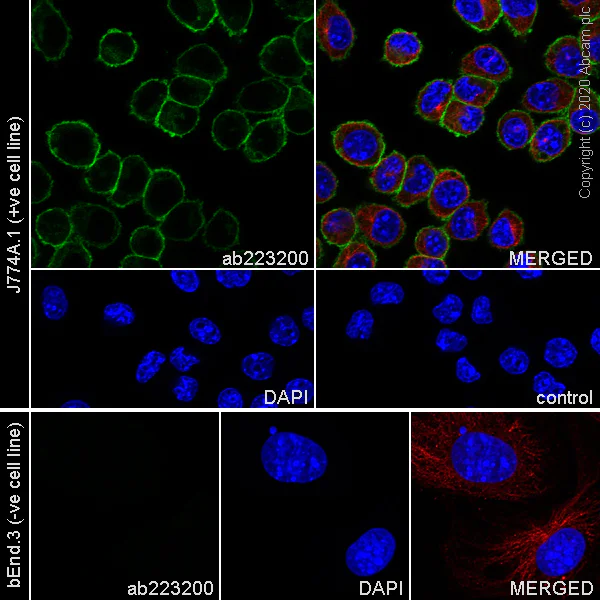

Immunocytochemistry/ Immunofluorescence - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized J774A.1 (mouse reticulum cell sarcoma monocyte macrophage) cells labelling CD16+CD32 with ab223200 at 1/500 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing strong membranous and weak cytoplasmic staining in J774A.1 cells. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.
Negative control : bEnd.3 cell (PMID : 23911392).
- IHC-P
Unknown

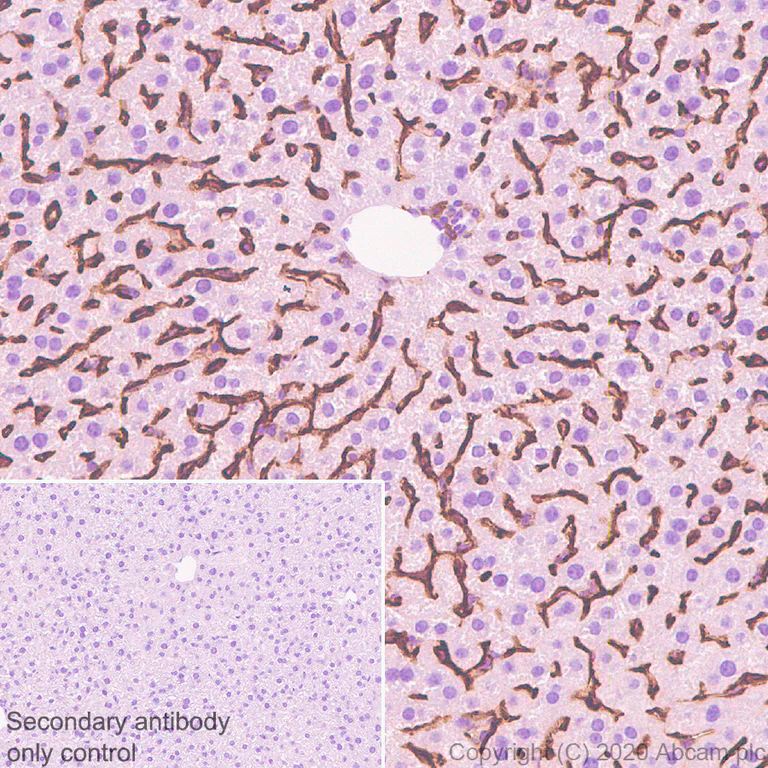

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Immunohistochemical analysis of paraffin-embedded mouse liver tissue labeling CD16+CD32 with ab223200 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on mouse liver. The section was incubated with ab223200 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- IP
Unknown

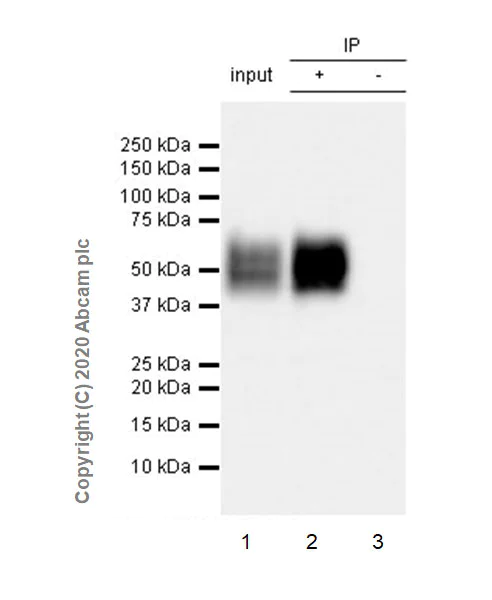

Immunoprecipitation - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
CD16+CD32 was immunoprecipitated from 0.35 mg J774A.1 (mouse reticulum cell sarcoma monocyte macrophage) whole cell lysate with ab223200 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab223200 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.
Lane 1 : J774A.1 (mouse reticulum cell sarcoma monocyte macrophage) whole cell lysate 10 ug
Lane 2 : ab223200 IP in J774A.1 whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab223200 in J774A.1 whole cell lysate
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 8 seconds.
All lanes:
Immunoprecipitation - Anti-CD16+CD32 antibody [EPR23501-203] (ab223200)
Predicted band size: 26 kDa
Observed band size: 40-60 kDa
false
- IP
Unknown

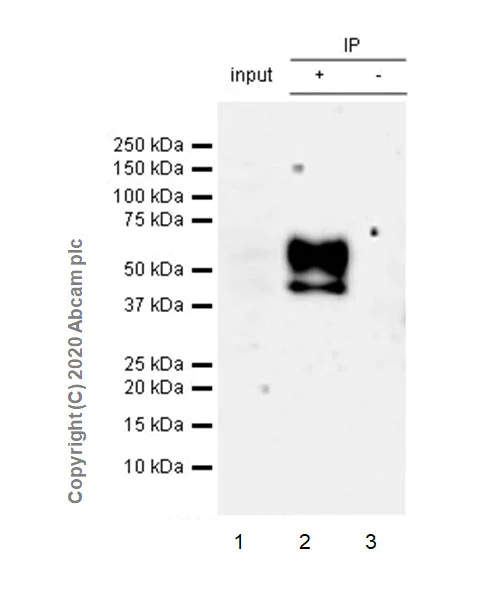

Immunoprecipitation - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
CD16+CD32 was immunoprecipitated from 0.35 mg Mouse spleen tissue lysate with ab223200 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab223200 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.
Lane 1 : Mouse spleen tissue lysate 10 ug
Lane 2 : ab223200 IP in Mouse spleen tissue lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab223200 in mouse spleen tissue lysate
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 3 minutes.
All lanes:
Immunoprecipitation - Anti-CD16+CD32 antibody [EPR23501-203] (ab223200)
Predicted band size: 26 kDa
Observed band size: 40-60 kDa
false
- WB
Lab

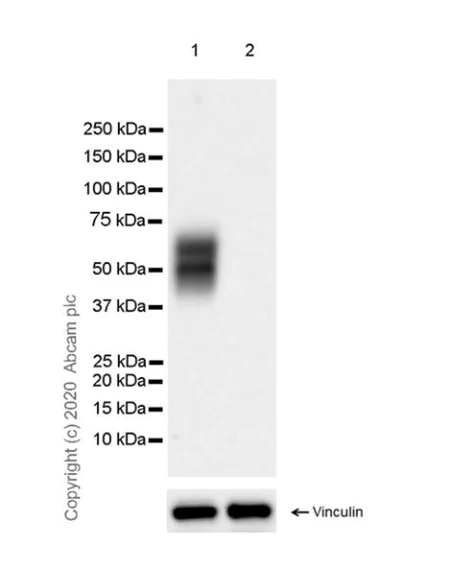

Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
The molecular weight observed is consistent with what has been described in the literature (PMID : 19503602, 31172847).
Exposure time : 3 minutes.
All lanes:
Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (ab223200) at 1/1000 dilution
Lane 1:
Mouse spleen tissue lysate at 20 µg
Lane 2:
Mouse liver tissue lysate at 20 µg
Secondary
All lanes:
Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Predicted band size: 26 kDa
Observed band size: 40-60 kDa
false
- WB
Lab

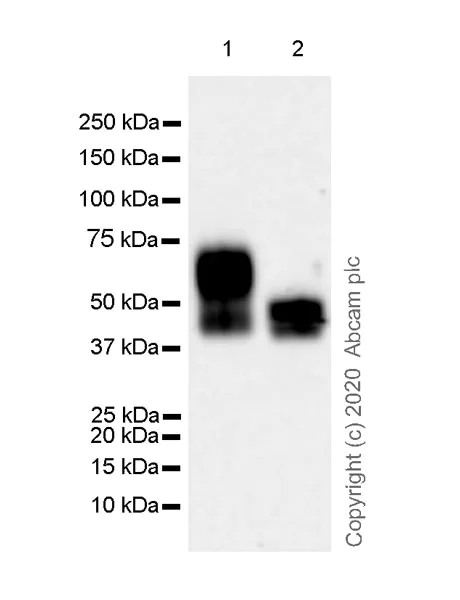

Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Blocking/Diluting buffer and concentration : 5% NFDM/TBST The molecular weight observed is consistent with what has been described in the literature (PMID : 19503602, 31172847). Negative control : bEnd.3 (PMID : 23911392). Exposure time : Lanes 1-2 : 5.5 seconds
Lanes 1 - 2:
Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (ab223200) at 1/1000 dilution
Lanes 1 - 2:
Western blot - Anti-CD16+CD32 antibody [EPR23501-203] - BSA and Azide free (<a href='/products/primary-antibodies/cd16cd32-antibody-epr23501-203-bsa-and-azide-free-ab275095'>ab275095</a>)
Lane 1:
J774A.1 (mouse reticulum cell sarcoma monocyte macrophage) whole cell lysate at 20 µg
Lane 2:
bEnd.3 (mouse brain endothelioma) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Observed band size: 40-60 kDa
false
Exposure time: 5.5s
- WB
Lab
Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (AB223200)
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
This product can recognize both CD16 and CD32.
The loading samples are E.coil extracts containing CD16 or CD32 recombinant protein respectively.
Exposure time : 70 seconds.
All lanes:
Western blot - Anti-CD16+CD32 antibody [EPR23501-203] (ab223200) at 1/1000 dilution
Lane 1:
His-tagged mouse CD16 recombinant protein (aa 31-215), 5 uL
Lane 2:
His-tagged mouse CD32 recombinant protein (aa 30-210), 25 uL
Secondary
All lanes:
Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Predicted band size: 26 kDa
false
関連する標識済み抗体及び組成の異なる製品 (3)
-
Anti-CD16+CD32 antibody [EPR23501-203] - BSA and Azide free
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-CD16+CD32 antibody [EPR23501-203]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-CD16+CD32 antibody [EPR23501-203]
Reactivity data
製品の詳細
What is this antibody validated in?
Anti-CD16+CD32 antibody [EPR23501-203] (ab223200) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF) in Mouse samples.
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.
Other related products
We have a range of other formats of antibody clone [EPR23501-203] also available for your convenience: ab223200, Carrier free - ab275095, Alexa Fluor® 647 - ab303478
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
出荷温度及び保存条件
製品の状態
精製方法
バッファー組成
出荷温度
短期保存期間
短期保存温度
長期保存温度
分注に関する情報
保管に関する情報
補足情報
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
CD16 and CD32 serve important roles in mediating immune cell interactions. They work as part of immune synapses facilitating antibody-dependent cellular cytotoxicity (ADCC) and phagocytosis processes. Due to their involvement in these complex activities they are included in immunological synapse formation and modulation extending their influence over overall immune regulation and response. These proteins are known to contribute to both innate and adaptive immune mechanisms as receptors for the Fc portion of immunoglobulin G.
Pathways
CD16 and CD32 interact within signaling pathways like the Fc gamma receptor-mediated phagocytosis pathway and the immune response-regulating signaling pathway. These receptors work in coordination with other immunoglobulin family members to initiate targeted cellular reactions necessary for immune challenge responses. CD32 often partners with CD19 and CD21 within pathways to modulate B cell receptor-mediated signaling.
