Anti-BTK 抗体 [EPR20445]
Anti-BTK antibody [EPR20445]
- RabMAb
- Recombinant
- 詳細を見る
Be the first to review this product! Submit a review
|
(12 Publications)
Anti-BTK antibody [EPR20445] (ab208937) is a rabbit monoclonal antibody detecting BTK in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IP, IHC-P, ICC/IF. Suitable for Human, Mouse, Rat.
- Biophysical QC for unrivalled batch-batch consistency
別名を表示する
AGMX1, ATK, BPK, BTK, Tyrosine-protein kinase BTK, Agammaglobulinemia tyrosine kinase, B-cell progenitor kinase, Bruton tyrosine kinase
- Flow Cyt (Intra)
Supplier Data

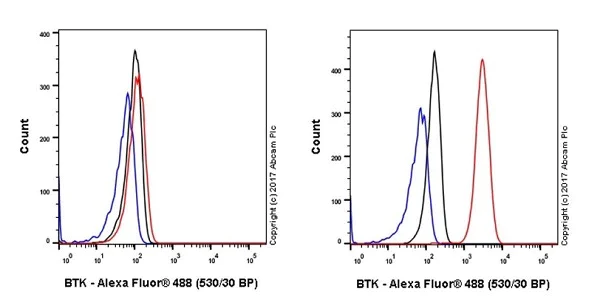

Flow Cytometry (Intracellular) - Anti-BTK antibody [EPR20445] (AB208937)
Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized Jurkat (human T cell leukemia cell line from peripheral blood) (left panel) and Ramos (human Burkitt's lymphoma cell line) (right panel) cell lines labeling BTK with ab208937 at 1/600 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/2000 dilution was used as the secondary antibody.
Negative control : Jurkat cell line (PMID : 24759210).
- ICC/IF
Supplier Data

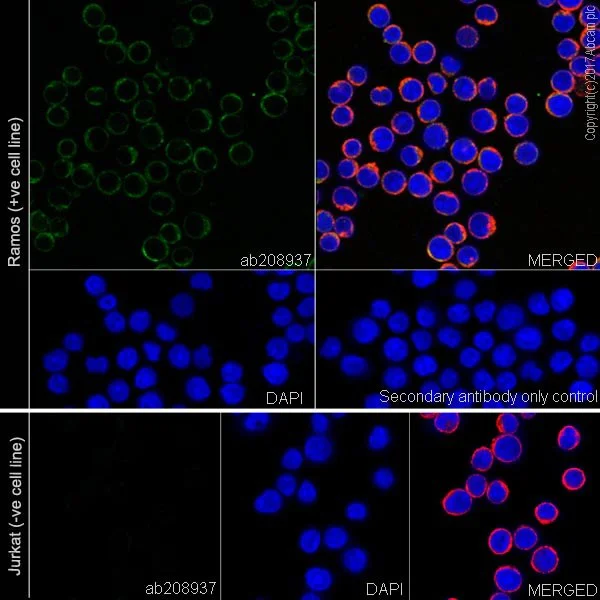

Immunocytochemistry/ Immunofluorescence - Anti-BTK antibody [EPR20445] (AB208937)
Immunofluorescent analysis of 100% methanol-fixed Ramos (human Burkitt's lymphoma cell line) and Jurkat (human T cell leukemia cell line from peripheral blood) cells labeling BTK with ab208937 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).
Confocal image showing cytoplasmic staining on Ramos cell line.
Negative control : Jurkat cell line (PMID : 24759210).
The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) (red) at 1/200 dilution.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-BTK antibody [EPR20445] (AB208937)
Immunohistochemical analysis of paraffin-embedded human colon tissue labeling BTK with ab208937 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Strong cytoplasmic staining on lymphoid nodule in human colon (PMID : 25433814). Counter stained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IHC-P
Supplier Data

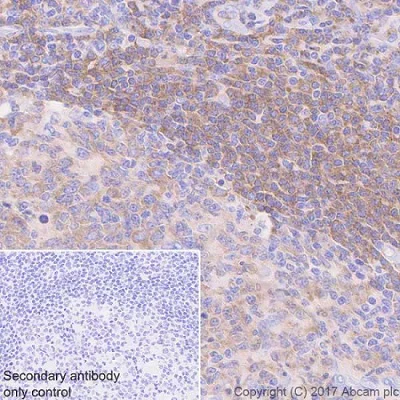

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-BTK antibody [EPR20445] (AB208937)
Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling BTK with ab208937 at 1/4000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Strong cytoplasmic staining in mantle zone and weaker cytoplasmic staining in the germinal center of human tonsil (PMID : 25433814). Counter stained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IP
Unknown

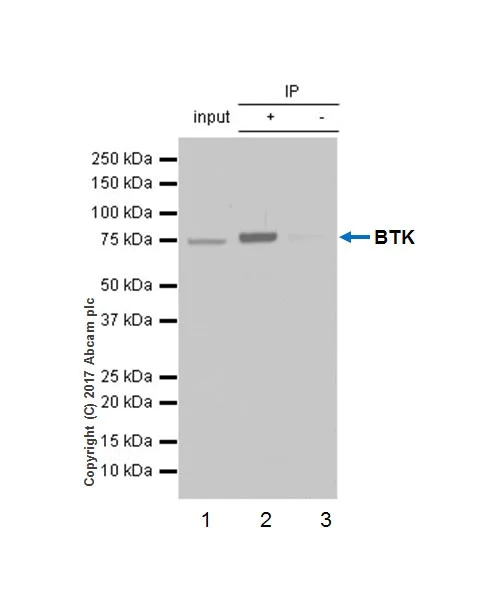

Immunoprecipitation - Anti-BTK antibody [EPR20445] (AB208937)
BTK was immunoprecipitated from 0.35 mg of Ramos (human Burkitt's lymphoma cell line) whole cell lysate with ab208937 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab208937 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.
Lane 1 : Ramos whole cell lysate 10 μg (Input).
Lane 2 : ab208937 IP in Ramos whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab208937 in Ramos whole cell lysate.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 3 seconds.
All lanes:
Immunoprecipitation - Anti-BTK antibody [EPR20445] (ab208937)
Predicted band size: 76 kDa
Observed band size: 76 kDa
false
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-BTK antibody [EPR20445] (AB208937)
Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) cell lines labeling BTK with ab208937 at 1/50 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) was used as the secondary antibody at 1/5000 dilution.
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-BTK antibody [EPR20445] (AB208937)
Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized NR8383 (rat alveolar macrophage) cell lines labeling BTK with ab208937 at 1/50 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) was used as the secondary antibody at 1/5000 dilution.
- ICC/IF
Lab

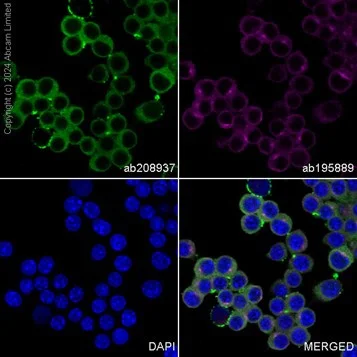

Immunocytochemistry/ Immunofluorescence - Anti-BTK antibody [EPR20445] (AB208937)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) cells labeling BTK with ab208937 at 1/250 (8.6 ug/ml) dilution followed by ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed secondary antibody at 1/1000 (2 ug/ml) dilution (green). ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used as a counterstain at 1/200 (2.5 ug/ml) dilution.
Confocal image showing cytoplasmic staining in RAW 264.7 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
- WB
Supplier Data

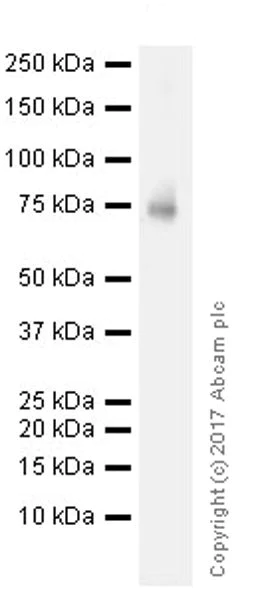

Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking/Dilution buffer : 5% NFDM/TBST.
This image is performed on a BIO-RAD® ChemiDoc™ MP instrument.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
All lanes:
Human lymph node lysate at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 76 kDa
Observed band size: 76 kDa
true
Exposure time: 3min
- WB
Supplier Data

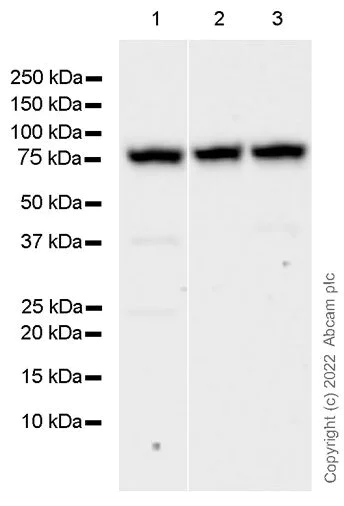

Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking buffer and concentration : 5% NFDM/TBST Diluting buffer and concentration : 5% NFDM/TBST Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
Lane 1:
THP-1 (human monocytic leukemia cell) whole cell lysate at 20 µg
Lane 2:
RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 3:
NR8383 (rat lung macrophage (alveolar)) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 76 kDa
Observed band size: 76 kDa
false
Exposure time: 37s
- WB
Lab
Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking buffer and concentration : 5% NFDM/TBST Diluting buffer and concentration : 5% NFDM/TBST Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
Lane 1:
THP-1 (human monocytic leukemia cell) whole cell lysate at 20 µg
Lane 2:
RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 3:
NR8383 (rat lung macrophage (alveolar)) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 76 kDa
Observed band size: 76 kDa
false
Exposure time: 37s
- WB
Supplier Data

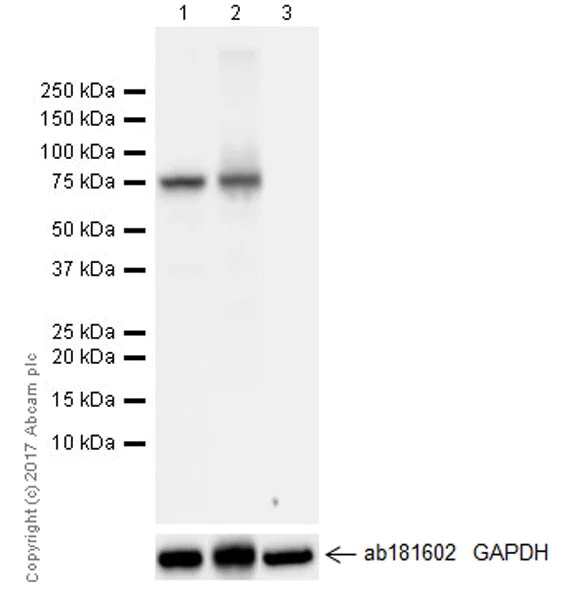

Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking/Dilution buffer : 5% NFDM/TBST.
The Jurkat T cell line is negative for BTK (PMID 24759210).
This image is performed on a BIO-RAD® ChemiDoc™ MP instrument.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
Lane 1:
Ramos (human Burkitt's lymphoma cell line) whole cell lysate at 20 µg
Lane 2:
NAMALWA (human Burkitt's lymphoma B lymphocyte) whole cell lysate at 20 µg
Lane 3:
Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 76 kDa
Observed band size: 76 kDa
true
Exposure time: 32s
- WB
Supplier Data

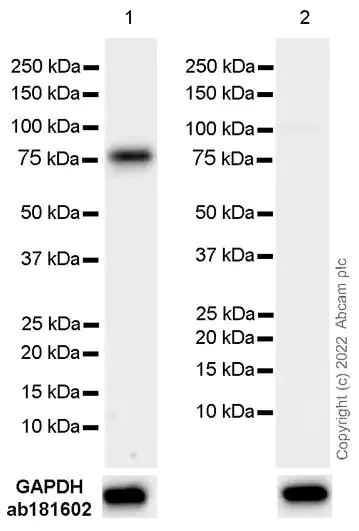

Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking buffer and concentration : 5% NFDM/TBST Diluting buffer and concentration : 5% NFDM/TBST Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
Lane 1:
RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 2:
NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 76 kDa
Observed band size: 76 kDa
false
Exposure time: 15s
- WB
Lab
Western blot - Anti-BTK antibody [EPR20445] (AB208937)
Blocking buffer and concentration : 5% NFDM/TBST Diluting buffer and concentration : 5% NFDM/TBST Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.
All lanes:
Western blot - Anti-BTK antibody [EPR20445] (ab208937) at 1/1000 dilution
Lane 1:
RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 2:
NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
false
Exposure time: 15s
関連する標識済み抗体及び組成の異なる製品 (4)
-
Anti-BTK antibody [EPR20445] - BSA and Azide free
-
660 APC
APC Anti-BTK antibody [EPR20445]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-BTK antibody [EPR20445]
-
519 FITC
FITC Anti-BTK antibody [EPR20445]
Reactivity data
製品の詳細
What is this antibody validated in?
Anti-BTK antibody [EPR20445] (ab208937) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF) in Human, Mouse, Rat samples.
What is the molecular weight of BTK?
Anti-BTK [EPR20445] (ab208937) specifically detects a band for BTK (UniProt: Q06187) at a molecular weight of 76kDa.
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.
Other related products
We have a range of other formats of antibody clone [EPR20445] also available for your convenience: ab208937, Carrier free - ab227812, APC - ab317755, Alexa Fluor® 647 - ab319012, FITC - ab322295
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
出荷温度及び保存条件
製品の状態
精製方法
バッファー組成
出荷温度
短期保存期間
短期保存温度
長期保存温度
分注に関する情報
保管に関する情報
補足情報
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
BTK plays an important role in the immune response by transmitting signals from the B cell receptor to the inside of the cell which promotes B cell maturation and survival. It operates as part of a larger signal transduction complex that includes other proteins and molecules. For accurate quantification of BTK expression a BTK sandwich ELISA kit may be utilized capturing and revealing the BTK protein's presence in sample preparations.
Pathways
BTK associates with both the B cell receptor signaling and the PI3K-Akt pathway. These pathways are critical for the proper functioning and proliferation of B cells. BTK interacts with proteins like PLCγ2 and BLNK in the signaling cascade highlighting its central role in transmitting extracellular signals to elicit appropriate cellular responses.
製品プロトコール
- Visit the General protocols
- Visit the Troubleshooting
ターゲットの情報
文献 (12)
Recent publications for all applications. Explore the full list and refine your search
Molecular medicine (Cambridge, Mass.) 31:148 PubMed40263985
2025
Applications
Unspecified application
Species
Unspecified reactive species
Translational lung cancer research 13:3152-3174 PubMed39669999
2024
Applications
Unspecified application
Species
Unspecified reactive species
iScience 27:109799 PubMed38726367
2024
Applications
Unspecified application
Species
Unspecified reactive species
Acta neuropathologica 147:75 PubMed38656399
2024
Applications
Unspecified application
Species
Unspecified reactive species
American journal of cancer research 14:1139-1156 PubMed38590399
2024
Applications
Unspecified application
Species
Unspecified reactive species
Brain pathology (Zurich, Switzerland) 34:e13240 PubMed38254312
2024
Applications
Unspecified application
Species
Unspecified reactive species
Experimental and therapeutic medicine 23:141 PubMed35069822
2022
Applications
Unspecified application
Species
Unspecified reactive species
Phytotherapy research : PTR 35:932-945 PubMed33164233
2020
Applications
Unspecified application
Species
Unspecified reactive species
International journal of molecular medicine 46:1409-1422 PubMed32945349
2020
Applications
Unspecified application
Species
Unspecified reactive species
Psychopharmacology 237:465-477 PubMed31811349
2019
Applications
Unspecified application
Species
Unspecified reactive species
Abcam product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
