Alexa Fluor® 488 Anti-alpha Tubulin 抗体 [DM1A] - Microtubule Marker

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized ES-D3 [D3] (mouse blastocyst-derived embryonic stem cell) cells labelling MTF2 with ab323444 at 1/50 (10.0 ug/ml) dilution (Green).

Confocal image showing nuclear staining in ES-D3 [D3] cell line (shown in magenta). The counterstain was observed in green. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : mouse primary neuron.
Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunocytochemistry/Immunofluorescence analysis of A375 (human malignant melanoma epithelial cell) labeling SOX10 with ab311668 at 1/50 (10.0 μg/mL). Cells were fixed with 4% Paraformaldehyde and permeabilised with 0.1% TritonX-100. ab195887 at 1/200 (2.5μg/mL) was as counterstain. Nuclear counterstain was DAPI. Confocal image showing nuclear staining in A375 cells. Negative control : HeLa (PMID : 29315345) Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Supplier Data

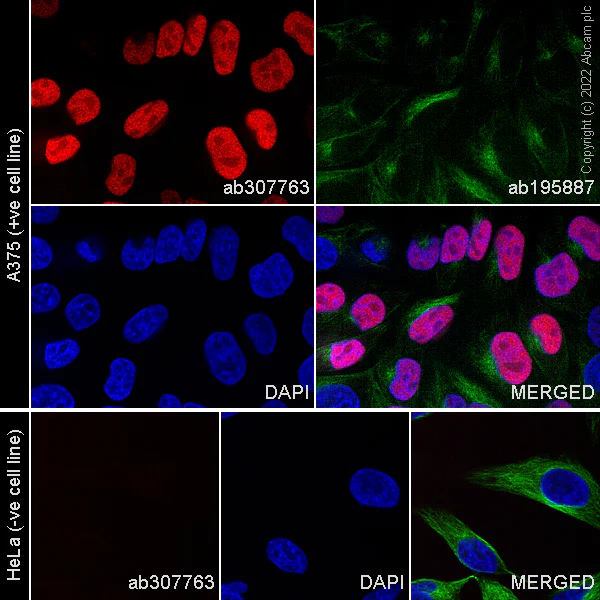

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A375 (human malignant melanoma epithelial cell) cells labeling SOX10 with ab307763 at 1/50 dilution (10.0 µg/ml). Confocal image showing nuclear staining in A375 cells. Negative control : HeLa (PMID : 29315345). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Red). Nuclear counterstain was DAPI (Blue).

• IM

Supplier Data

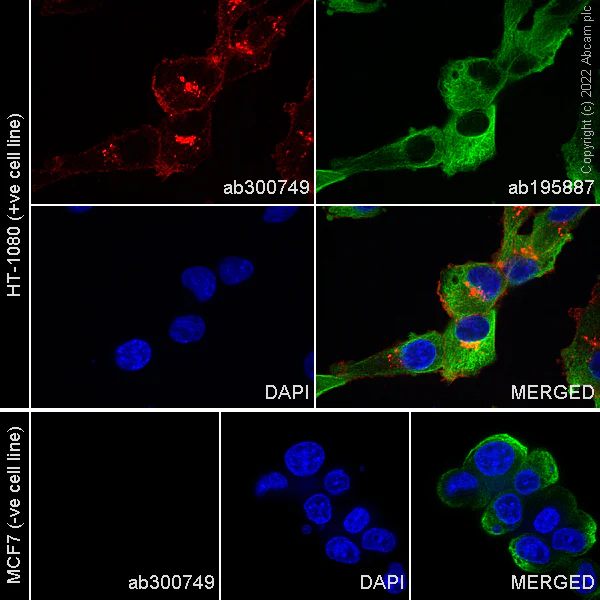

Immunomicroscopy - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HT-1080 (human fibrosarcoma epithelial cell) cells labeling MMP14 with ab300749 at 1/50 dilution (10.0 µg/mL) (Red). Confocal image showing cytoplasmic and membranous staining in HT-1080 cell line is observed. Negative control : MCF7 (PMID : 19208838). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Jurkat (human T cell leukemia T lymphocyte from peripheral blood) cells labelling CD3 zeta (phospho Y142) with ab310016 at 1/50 dilution (10.0 µg/ml). ab195887, Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used at 1/200 dilution (2.5 µg/ml) for Tubulin counter stanining (Green). DAPI was used as nuclear counter stain. Confocal image showing increased cytoplasmic staining in Jurkat cells treated with pervanadate (1 mM) for 30 min. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling GC1q R with ab305041 at 1/100 (5 ug/ml) dilution. Confocal image showing cytoplasmic staining in HeLa cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa cells (human cervix adenocarcinoma epithelial cell) labelling c-Fos with ab300747 at 1/50 dilution (10.0 µg/mL) (Red). Confocal image showing nuclear staining in HeLa cells in serum free medium for 36 hours, followed by addition of 20% fetal bovine serum for 2 hours (Treated, PMID : 14981092). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% Triton X-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labeling LC3B with ab307768 at 1/50 dilution (10 µg/ml) (Red). Confocal image showing increased cytoplasmic staining in HeLa cells treated with Chloroquine (50μM) for 24 hours. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A431 (human epidermoid carcinoma epithelial cell) cells labelling P cadherin with ab314928 at 1/50 (10.0 ug/ml) dilution. Confocal image showing membranous staining in A431 cell line. Negative control : MCF7 (PMID : 10545506). Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

ab195887 staining alpha Tubulin in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells. The cells were fixed with 4% formaldehyde (10 minutes), permeabilized in 0.1% PBS-Triton X-100 for 5 minutes then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1 hour. The cells were then incubated with ab195887 at 1/167 dilution (shown in green) overnight at +4°C. Nuclear DNA was labeled in blue with DAPI.

This product gave a positive signal in 100% methanol (10 minutes) fixed HeLa cells under the same testing conditions.

Image was taken with a Confocal microscope (Leica micro-systems, TCS SP8).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling KAP1 with ab314593 at 1/50 (10.0 ug/ml) dilution (Red). Confocal image showing nuclear staining in HeLa cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

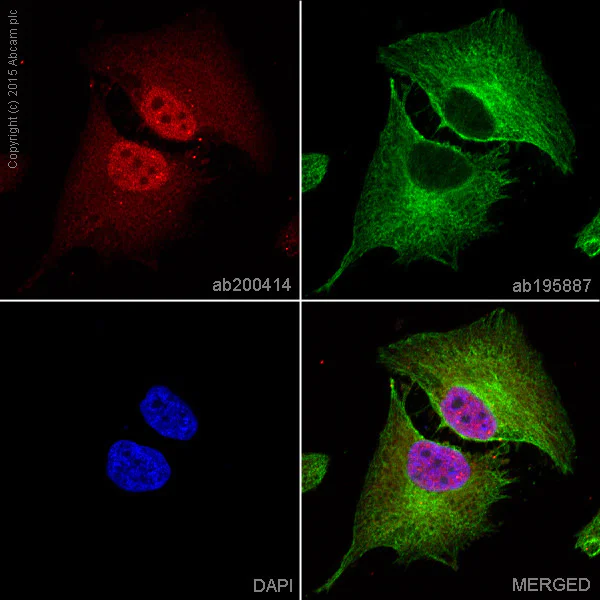

ab200414 staining IKK alpha in HeLa cells. The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab200414 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 2µg/ml (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Histone H3 (phospho T3) with ab305215 at 1/500 (1 ug/ml) dilution. Confocal image showing nuclear staining in HeLa cells in M phase .Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized MCF7 (human breast adenocarcinoma epithelial cell) cells labelling Rb with ab300670 at 1/50 dilution (10.0 µg/mL) (Red). Confocal image showing nuclear staining in MCF7 cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labeling Survivin with ab307853 at 1/500 dilution (1.0 ug/ml). Confocal image showing kinetochores and midbody (arrow) staining in the HeLa cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 ug/ml) (Red). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized SH-SY5Y (human neuroblastoma epithelial cell) cells labeling PGP9.5 with ab300549 at 1/50 dilution (10.0 µg/mL) (Red). Confocal image showing cytoplasmic and nuclear staining in SH-SY5Y cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A549 (human lung carcinoma epithelial cell) cells labeling RAB10 with ab306567 at 1/50 dilution (10 ug/ml) (Red). Confocal image showing cytoplasmic staining in A549 cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution 2.5 ug/ml (Green). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized A431 (human epidermoid carcinoma epithelial cell) cells labeling EGFR with ab307849 at 1/50 dilution (10.0 µg/ml). Confocal image showing membranous and weak cytoplasmic staining in A431 cells. Negative control : Jurkat (PMID : 24045666). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Red). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Hsp70 with ab305046 at 1/50 (10 ug/ml) dilution. Confocal image showing cytoplasmic and nuclear staining in HeLa cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

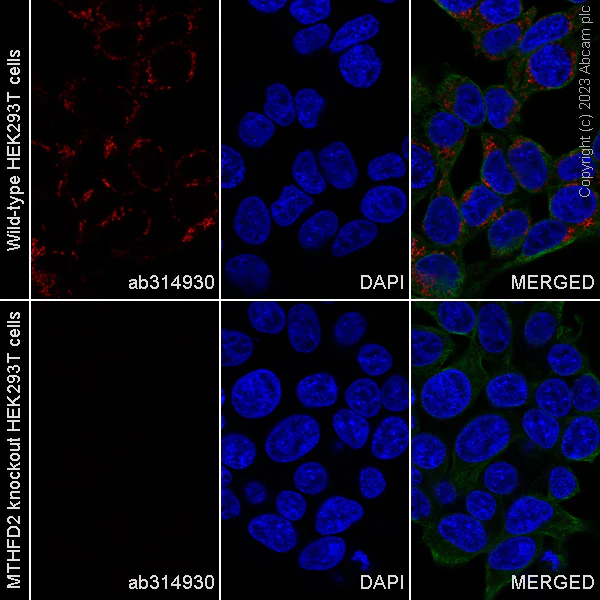

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized MTHFD2 KO HEK293T (MTHFD2 knockout human embryonic kidney epithelial cell) (ab266383) cells labelling MTHFD2 with ab314930 at 1/50 (10.0 ug/ml) dilution. Confocal image showing cytoplasmic staining in wildtype HEK293T cells and no staining in MTHFD2 knockout HEK293T. Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

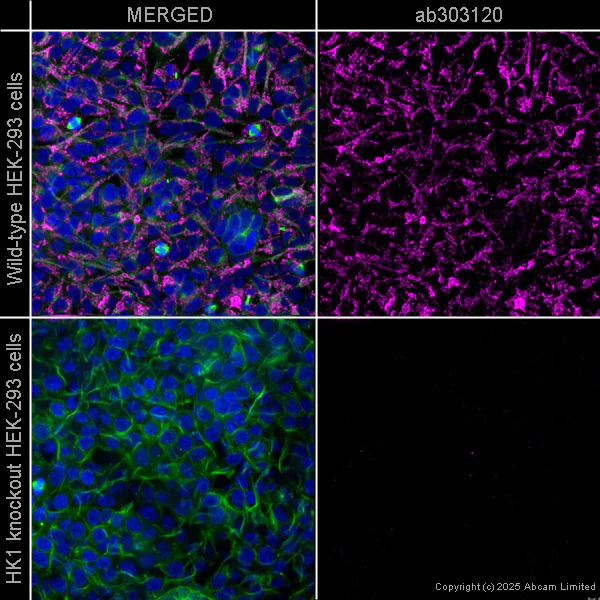

Immunofluorescent analysis of 4% PFA-fixed 0.1% Triton X-100 permeabilized HEK-293 WT and HEK-293-HK1 KO cells labelling Hexokinase 1 with ab303120 at 0.2 μg/ml concentration (Magenta). Cells were counterstained with ab195887 Anti-Tubulin (Alexa Fluor® 488) at 1 : 250 (2 μg/ml) (Green). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HNRNPA2B1 wild-type and KO HEK293T (ab266404) cells labelling hnRNP A2B1 with ab300734 at 1/50 dilution (10.0 µg/ml) (Red). Confocal image showing nuclear staining in 293T cells and nearly no staining in HNRNPA2B1 knockout 293T cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% PFA-fixed 0.1% Triton X-100 permeabilized HEK-293 WT and HEK-293-HK1 KO cells labelling Hexokinase 1 with ab197864 at 0.2 μg/ml concentration (Magenta). Cells were counterstained with ab195887 Anti-Tubulin (Alexa Fluor® 488) at 1 : 250 (2 μg/ml) (Green). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

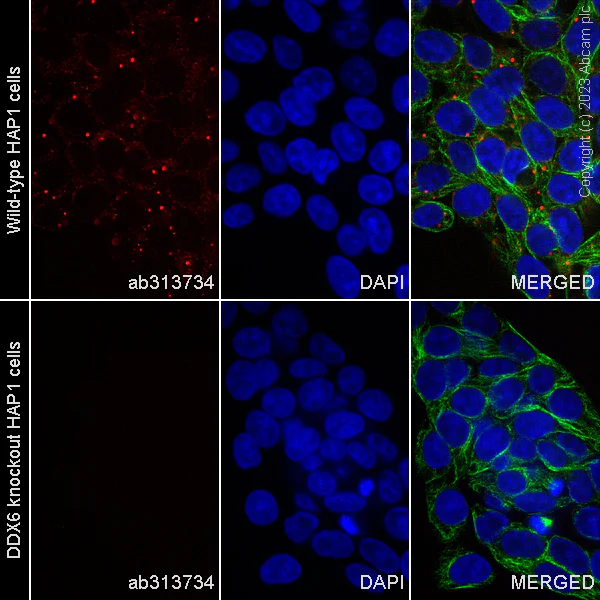

Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized DDX6 KO HAP1 (DDX6 knockout human chronic myelogenous leukemia near-haploid cell) cells labelling DDX6 with ab313734 at 1/50 (10 ug/ml) dilution(Green). Confocal image showing no staining in DDX6 knockout HAP1 cells and showing punctate cytoplasmic staining in wildtype HAP1 cells. Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Human PBMC (human primary peripheral blood mononuclear cell) cells labelling CD69 with ab325108 at 1/50 (10.0 ug/ml) dilution (Magenta).

Confocal image showing weak cytoplasmic staining in subset of human PBMCs, the expression increased after treatment with ionomycin (500 ng/ml) and PMA (10 ng/ml) for 3 hours.
The image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 (2.5 ug/ml) dilution (Green). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

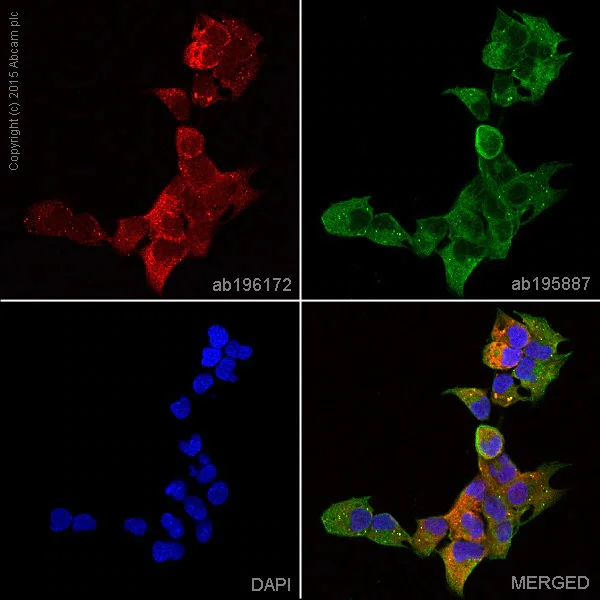

ab196172 staining Cardiac Troponin I in A673 (Human muscle Ewing's Sarcoma cell line) cells. The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab196172 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 2µg/ml (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling SCD1 with ab314925 at 1/50 (10.0 ug/ml) dilution. Confocal image showing cytoplasmic staining in HepG2 cell line. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling Pericentrin with ab314881 at 1/50 (10.0 ug/ml) dilution. Confocal image showing centrosome staining in HeLa cell line. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

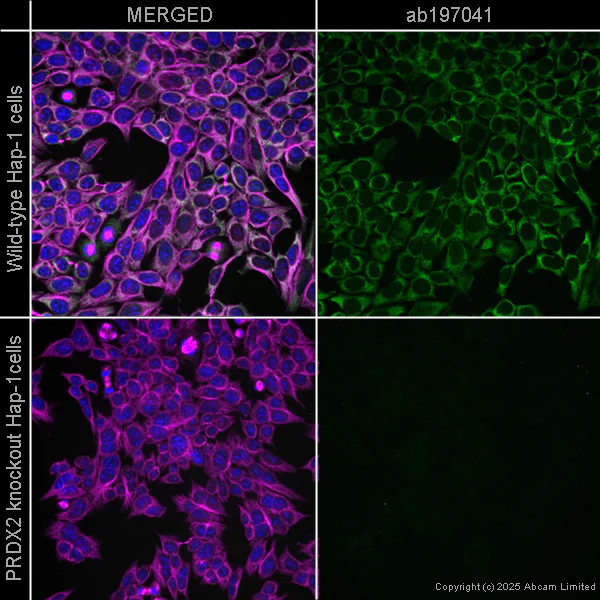

Immunofluorescent analysis of 100% methanol-fixed 0.1% Triton X-100 permeabilized Hap1 WT and Hap1-PRDX2 KO cells labelling Peroxiredoxin 2 with ab197041 (green) at 1 μg/ml. Cells were counterstained with ab195887 Anti-Tubulin (Alexa Fluor® 488) at 1 : 250 (2 μg/ml) (magenta). The nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 80% Methanol-fixed, 0.1% TritonX-100 permeabilized MOLT-4 (human lymphoblastic leukemia T lymphoblast) cells labelling IL-12B with ab305042 at 1/50 (10 ug/ml) dilution. Confocal image showing cytoplasmic staining in MOLT-4 cells. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling hnRNP A2B1 with ab300734 at 1/50 dilution (10.0 µg/ml) (Red). Confocal image showing nuclear staining in HeLa cell line. ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 dilution (2.5 µg/ml) (Green). The Nuclear counterstain was DAPI (Blue).

• Flow Cyt (Intra)

Unknown

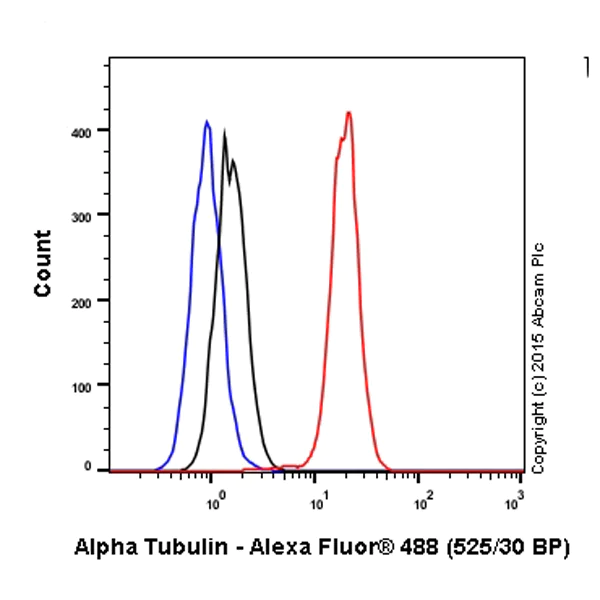

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Overlay histogram showing HeLa (Human epithelial cell line from cervix adenocarcinoma) cells stained with ab195887 (red line). The cells were fixed with 80% methanol (5 minutes) and then permeabilized with 0.1% PBS-Tween for 20 minutes. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab195887, 1/500 dilution) for 30 minutes at 22°C. Isotype control antibody (black line) was mouse IgG1 (monoclonal) Alexa Fluor^® 488 (ab171463) used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 4% formaldehyde (10 minutes)/permeabilized with 0.1% PBS-Tween for 20 minutes used under the same conditions.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A375 (human malignant melanoma epithelial cell) cells labelling CD146 with ab305213 at 1/250 (2.0 ug/ml) dilution. Confocal image showing membranous staining in A375 cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling CDKN2A/p14ARF with ab305216 at 1/500 (1.0 ug/ml) dilution. Confocal image showing nucleolar staining in HeLa cells .Negative control : MCF7 (PMID : 29904067). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : PBS instead of the primary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

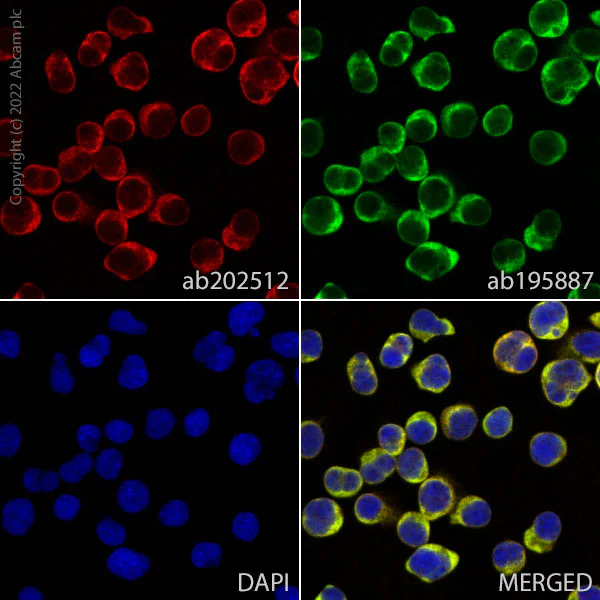

ab202512 staining CD90 / Thy1 in Jurkat cells. The cells were fixed with 4% PFA (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab202512 at 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 488), at 1/250 dilution (pseudocolored in green). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

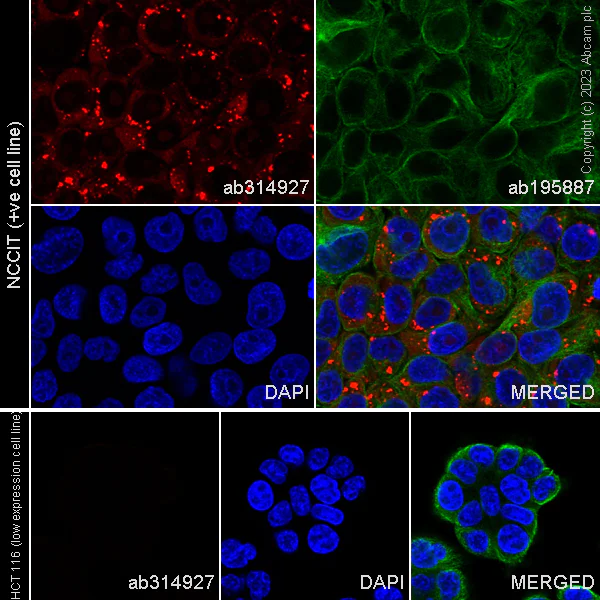

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCCIT (human pluripotent embryonic carcinoma epithelial cell) cells labelling LINE-1 ORF1p with ab314927 at 1/50 (10.0 ug/ml) dilution. Confocal image showing cytoplasmic with punctate foci and nucleolar staining in NCCIT cell line. Low expression : HCT 116 (PMID : 27016617). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Vimentin (phospho S56) with ab313592 at 1/500 (1.0 ug/ml) dilution (Green). Confocal image showing positive staining in HeLa cells in M phase.Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling RBM3 with ab314932 at 1/50 (10.0 ug/ml) dilution. Confocal image showing nuclear and weak cytoplasmic staining in HepG2 cell line. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195887 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 488) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (AB195887)

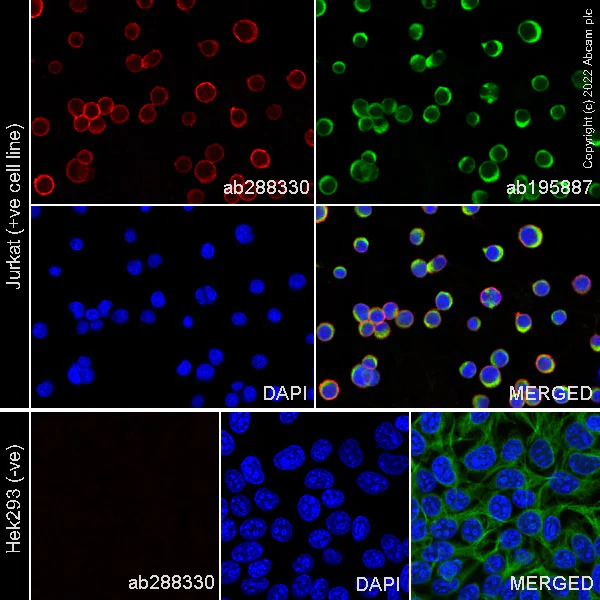

ab288330 staining CD28 in Jurkat cells, with negative expression in HEK293 cells. The cells were fixed with 100% methanol (5 min), permeabilised with 0.1% Triton x-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab288330 at 5 µg/ml (shown in red). ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488) (shown in green) was used at 2 µg/ml for structural counterstaining.

Image was acquired with a confocal microscope (Leica-Microsystems TCS SP8) and a single confocal section is shown.
