AB325452

mCherry ELISA Kit, Chemiluminescent

SimpleStep
詳細を見る

Be the first to review this product! Submit a review

(0 Publication)

mCherry ELISA Kit, Chemiluminescent is a 55-min single-wash Simplestep Ignite^TM ELISA for the rapid quantification of mCherry with higher sensitivity and broader measuring range.

- Single 30 min incubation and single -wash step for results in less than an hour
- Chemiluminescent detection allows a broad dynamic range :0.91 - 2000 pg/mL with a sensitivity of 0.42 pg/mL
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Patent Pending

7 Images

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

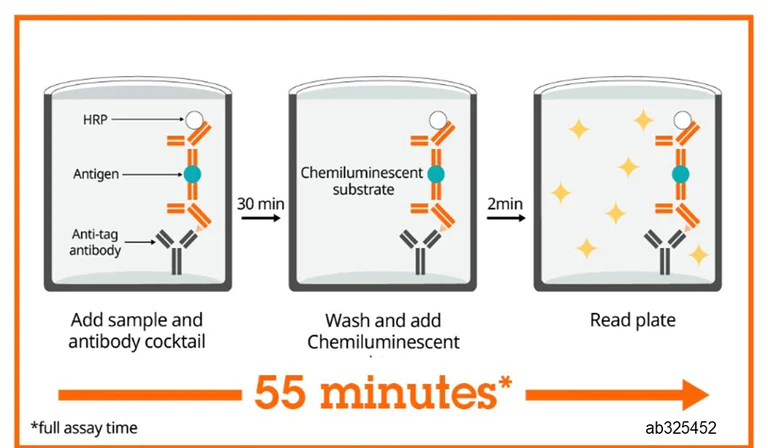

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

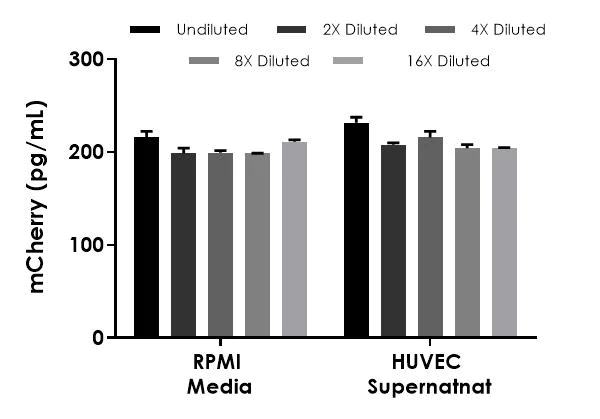

Recombinant mCherry was spiked into the following samples and diluted in a 2-fold dilution series in Sample Diluent NS. Undiluted samples are 100% RPMI cell culture media + 10% FBS and 100% HUVEC supernatant. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

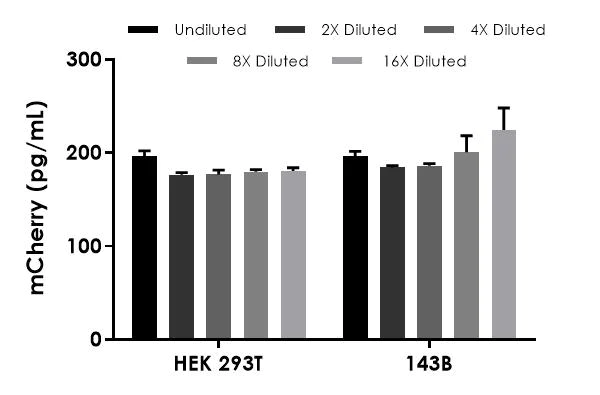

Recombinant mCherry was spiked into the following samples and diluted in a 2-fold dilution series in 1X Cell Extraction Buffer PTR. Undiluted samples are 200 µg/mL HEK293T cell extract and 143B (wild type) cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2).

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

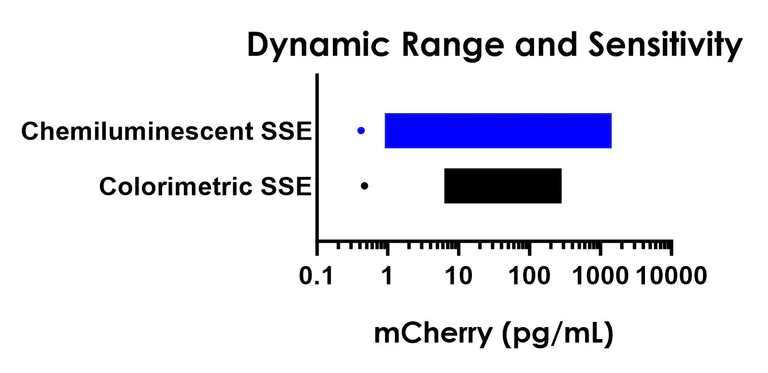

Dynamic range comparison between the Chemiluminescent mCherry SimpleStep ELISA and colorimetric mCherry SimpleStep ELISA (ab221829). The Chemiluminescent SimpleStep ELISA kit shows increased dynamic range and sensitivity.

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

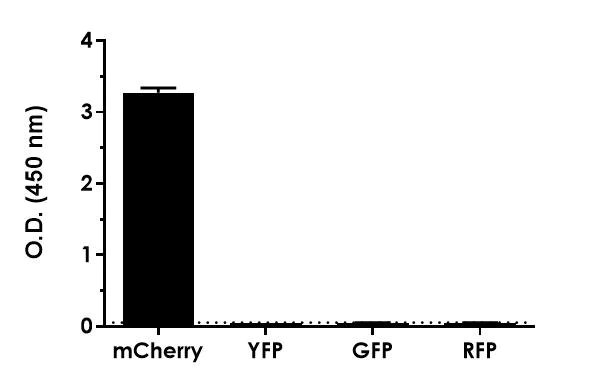

Raw O.D. values are shown for mCherry protein, YFP, GFP, and RFP. All proteins were loaded at 400 pg/mL. The average background O.D. is represented by the dashed line. Signal from YFP, GFP, and RFP loaded at 400 pg/mL was equivalent to background.

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

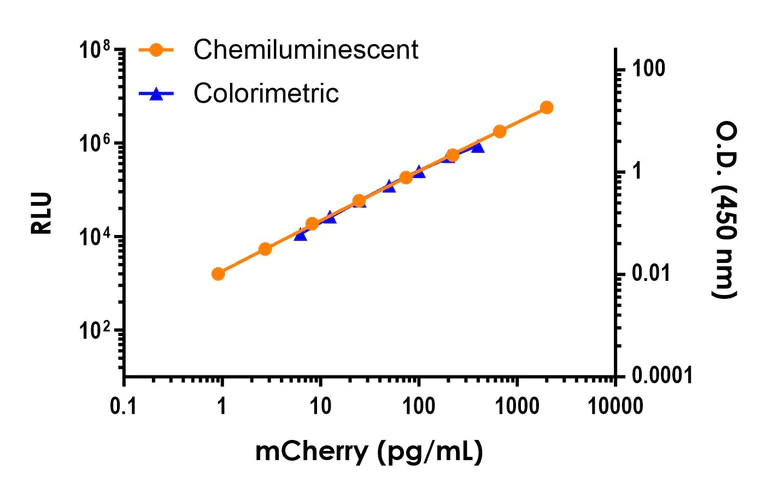

Standard curve comparison between the Chemiluminescent mCherry SimpleStep ELISA and colorimetric mCherry SimpleStep ELISA (ab221829) in 1X Cell Extraction Buffer PTR. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - mCherry ELISA Kit, Chemiluminescent (AB325452)

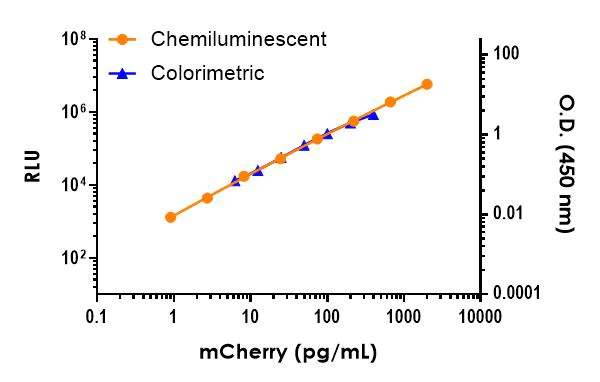

Standard curve comparison between the Chemiluminescent mCherry SimpleStep ELISA and colorimetric mCherry SimpleStep ELISA (ab221829) in Sample Diluent NS. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

検出方法

Luminescent

サンプルタイプ

Cell culture supernatant, Cell Extract

アッセイタイプ

Sandwich (quantitative)

検出感度

= 0.42 pg/mL

検出範囲

0.91 - 2000 pg/mL

アッセイ時間

55m

アッセイプラットフォーム

Pre-coated microplate (12 x 8 well strips)

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

製品の詳細

mCherry ELISA Kit, Chemiluminescent (ab325452) is a rapid single-wash sandwich 55-min ELISA to measure mCherry in Cell Culture Supernatant, Cell Extract with a sensitivity of 0.42 pg/ml

How the assay works

mCherry ELISA Kit, Chemiluminescent (ab325452) SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time. By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colormetric ELISAs.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.<br>Please refer to our protocol booklet for more details.

mCherry (ab325452) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature

2. Wash

3. Add prepared ChemiHRP development solution - incubate for 2 min

4. Read the results on a plate reader capable of luminescence detection

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

- Anti-mCherry antibody [EPR20579-246] - BSA and Azide free (Capture) ab244649

- Anti-mCherry antibody [EPR20579-1] - BSA and Azide free (Detector) ab244910

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

精度

[ { "reproducibilityType": "Intra", "sample": "Supernatant", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.9" }, { "reproducibilityType": "Inter", "sample": "Supernatant", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 3.7" } ]

style

left-column

回収率

[ { "sample": "Cell culture supernatant", "range": "110 - 113 %", "average": "= 111" }, { "sample": "Cell Lysate", "range": "97 - 102 %", "average": "= 100" } ]

style

left-column

製品内容

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325452-1x96Tests", "assetComponentDetails": [ { "size":"1 x 6 mL", "name":"Antibody Diluent 4BC", "number":"AB325452-CMP04", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X mCherry Capture Antibody", "number":"AB325452-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325452-CMP11", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325452-CMP08", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB325452-CMP05", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325452-CMP09", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB325452-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"mCherry Lyophilized Recombinant Protein", "number":"AB325452-CMP03", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X mCherry Detector Antibody", "number":"AB325452-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325452-CMP12", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325452-CMP10", "productcode":"" }, { "size":"1 x 50 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB325452-CMP07", "productcode":"" } ] } } }
