AB325451

Human Frataxin ELISA Kit, Chemiluminescent

Human Frataxin ELISA Kit, Chemiluminescent

Be the first to review this product! Submit a review

|

(0 Publication)

Human Frataxin ELISA Kit, Chemiluminescent is a 55-min single-wash Simplestep IgniteTM ELISA for the rapid quantification of Human Frataxin with higher sensitivity and broader measuring range.

- Single 30 min incubation and single -wash step for results in less than an hour
- Chemiluminescent detection allows a broad dynamic range :0.73 - 1600 pg/mL with a sensitivity of 0.53 pg/mL
- Design your own immunoassay: we also offer the conjugation-ready antibody pair
- Patent Pending

別名を表示する

FRDA, X25, FXN, Friedreich ataxia protein, Fxn

5 Images
Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)
  • sELISA

Lab

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)

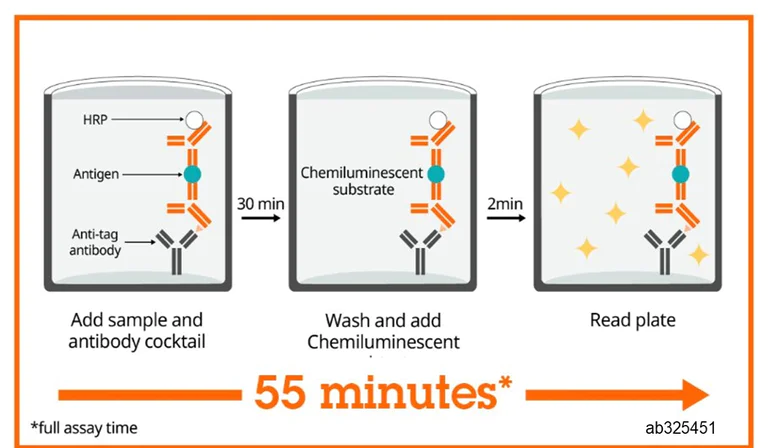

SimpleStep ELISA® Ignite technology allows the formation of the antibody-antigen complex in one single step, reducing assay time to 55 minutes. Add samples or standards and antibody mix to wells all at once, incubate, wash, and add your final substrate. See protocol for a detailed step-by-step guide.

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)
  • sELISA

Lab

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)

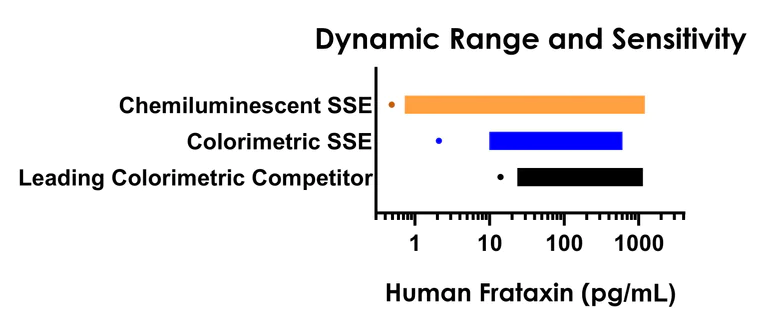

Dynamic range comparison between the Chemiluminescent Human Frataxin SimpleStep ELISA, colorimetric Human Frataxin SimpleStep ELISA (ab176112), and leading colorimetric competitor. The Chemiluminescent SimpleStep ELISA kit shows increased sensitivity and increased dynamic range.

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)
  • sELISA

Lab

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)

Serum of ten individual healthy human female donors was measured in duplicate. Interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). The mean Frataxin concentration was determined to be 86.4 pg/mL with a range of 40.9 – 238.9 pg/mL.

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)
  • sELISA

Lab

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)

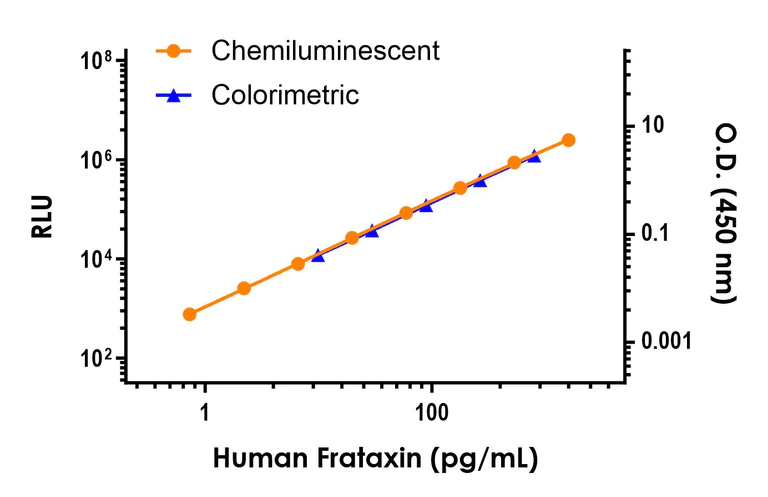

Standard curve comparison between the Chemiluminescent Human Frataxin SimpleStep ELISA and colorimetric Human Frataxin SimpleStep ELISA (ab176112) in 1X Cell Extraction Buffer PTR Background-subtracted data values (mean +/- SD) are graphed.

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)
  • sELISA

Lab

Sandwich ELISA - Human Frataxin ELISA Kit, Chemiluminescent (AB325451)

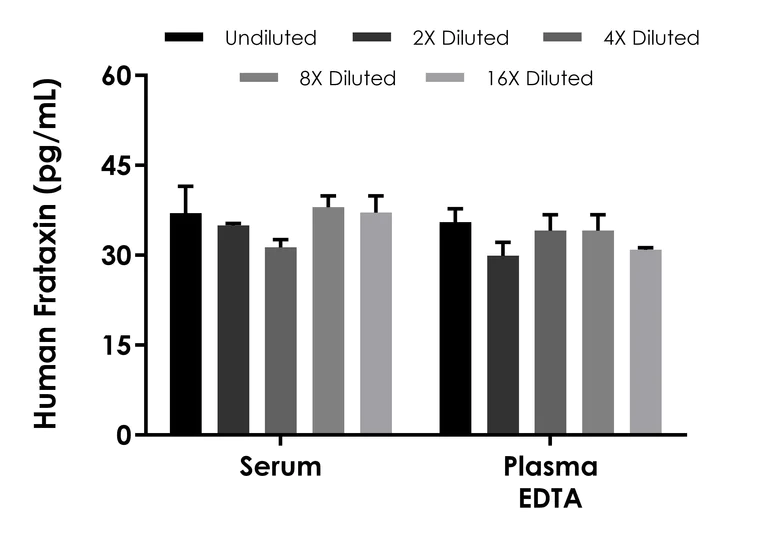

Interpolated concentration of native Frataxin was measured in duplicate at different sample concentrations. Undiluted samples are 100% serum and plasma (EDTA). The interpolated dilution factor corrected values (to neat sample) are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer PTR.

Key facts

検出方法

Luminescent

サンプルタイプ

Serum, EDTA Plasma, Cell culture supernatant, Cell Extract

交差種

Human

アッセイタイプ

Sandwich (quantitative)

検出感度

= 0.53 pg/mL

検出範囲

0.73 - 1600 pg/mL

アッセイ時間

55m

アッセイプラットフォーム

Pre-coated microplate (12 x 8 well strips)

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

製品の詳細

Human Frataxin ELISA Kit, Chemiluminescent (ab325451) is a rapid single-wash sandwich 55-min ELISA to measure Human Frataxin in Serum, EDTA Plasma, Cell Culture Supernatant, Cell Extract with a sensitivity of 0.53 pg/ml.

How the assay works

Human Frataxin ELISA Kit, Chemiluminescent (ab325451) SimpleStep ELISA®  employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step during a 30 min only incubation, significantly reducing assay time.  By utilizing a chemiluminscent detection method this improves the sensitivity and dynamic range when compared to traditional colormetric ELISAs.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.

Please refer to our protocol booklet for more details.

Human Frataxin (ab325451) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 30 min at room temperature

2. Wash

3. Add prepared ChemiHRP development solution - incubate for 2 min

4. Read the results on a plate reader capable of luminescence detection

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

精度

[ { "reproducibilityType": "Intra", "sample": "Serum", "replicates": 9, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 2.3" }, { "reproducibilityType": "Inter", "sample": "Serum", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 6.3" } ]

回収率

[ { "sample": "Serum", "range": "86 - 98 %", "average": "= 92" }, { "sample": "EDTA Plasma", "range": "88 - 92 %", "average": "= 89" }, { "sample": "Cell culture media", "range": "93 - 101 %", "average": "= 97" } ]

製品内容

{ "values": { "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325451-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human Frataxin Capture Antibody", "number":"AB325451-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated Black 96-Well Microplate", "number":"AB325451-CMP10", "productcode":"" }, { "size":"1 x 1 mL", "name":"50X Cell Extraction Enhancer Solution (ab193971)", "number":"AB325451-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Frataxin Lyophilized Recombinant Protein", "number":"AB325451-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325451-CMP07", "productcode":"" }, { "size":"1 x 10 mL", "name":"5X Cell Extraction Buffer PTR (ab193970)", "number":"AB325451-CMP05", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human Frataxin Detector Antibody", "number":"AB325451-CMP02", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seal", "number":"AB325451-CMP11", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent B", "number":"AB325451-CMP09", "productcode":"" }, { "size":"1 x 3 mL", "name":"ChemiHRP Reagent A", "number":"AB325451-CMP08", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BI", "number":"AB325451-CMP04", "productcode":"" } ] } } }

出荷温度及び保存条件

出荷温度
Blue Ice
短期保存温度
+4°C
長期保存温度
+4°C
保管に関する情報
+4°C

製品プロトコール

ターゲットの情報

Frataxin mature form. Functions as an activator of persulfide transfer to the scaffoding protein ISCU as component of the core iron-sulfur cluster (ISC) assembly complex and participates to the [2Fe-2S] cluster assembly (PubMed : 12785837, PubMed : 24971490). Accelerates sulfur transfer from NFS1 persulfide intermediate to ISCU and to small thiols such as L-cysteine and glutathione leading to persulfuration of these thiols and ultimately sulfide release (PubMed : 24971490). Binds ferrous ion and is released from FXN upon the addition of both L-cysteine and reduced FDX2 during [2Fe-2S] cluster assembly (PubMed : 29576242). The core iron-sulfur cluster (ISC) assembly complex is involved in the de novo synthesis of a [2Fe-2S] cluster, the first step of the mitochondrial iron-sulfur protein biogenesis. This process is initiated by the cysteine desulfurase complex (NFS1 : LYRM4 : NDUFAB1) that produces persulfide which is delivered on the scaffold protein ISCU in a FXN-dependent manner. Then this complex is stabilized by FDX2 which provides reducing equivalents to accomplish the [2Fe-2S] cluster assembly. Finally, the [2Fe-2S] cluster is transferred from ISCU to chaperone proteins, including HSCB, HSPA9 and GLRX5 (By similarity). May play a role in the protection against iron-catalyzed oxidative stress through its ability to catalyze the oxidation of Fe(2+) to Fe(3+); the oligomeric form but not the monomeric form has in vitro ferroxidase activity (PubMed : 15641778). May be able to store large amounts of iron in the form of a ferrihydrite mineral by oligomerization; however, the physiological relevance is unsure as reports are conflicting and the function has only been shown using heterologous overexpression systems (PubMed : 11823441, PubMed : 12755598). May function as an iron chaperone protein that protects the aconitase [4Fe-4S]2+ cluster from disassembly and promotes enzyme reactivation (PubMed : 15247478). May play a role as a high affinity iron binding partner for FECH that is capable of both delivering iron to ferrochelatase and mediating the terminal step in mitochondrial heme biosynthesis (PubMed : 15123683, PubMed : 16239244).. Extramitochondrial frataxin. Modulates the RNA-binding activity of ACO1 (PubMed : 20053667). May be involved in the cytoplasmic iron-sulfur protein biogenesis (PubMed : 16091420). May contribute to oxidative stress resistance and overall cell survival (PubMed : 16608849).
See full target information FXN
