AB325255

Human ALK-1 (ACVRL1) ELISA Kit

SimpleStep
詳細を見る

Be the first to review this product! Submit a review

(0 Publication)

Human ALK-1 (ACVRL1) ELISA Kit is a Sandwich ELISA for the measurement of Human ALK-1 (ACVRL1) in Human in Cell/Tissue Extracts samples.

別名を表示する

ACVRLK1, ALK1, ACVRL1, Activin receptor type-1-like, Activin receptor-like kinase 1, Serine/threonine-protein kinase receptor R3, TGF-B superfamily receptor type I, ALK-1, SKR3, TSR-I

4 Images

Sandwich ELISA - Human ALK-1 (ACVRL1) ELISA Kit (AB325255)

sELISA

Lab

Sandwich ELISA - Human ALK-1 (ACVRL1) ELISA Kit (AB325255)

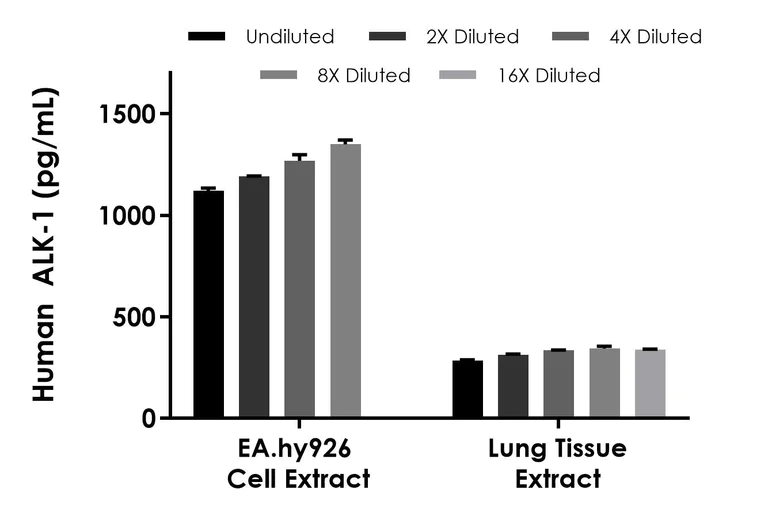

Interpolated concentration of native ALK-1 was measured in duplicate at different sample concentrations. Undiluted samples are as follows : EA.hy926 cell extract 75 µg/mL and human lung tissue extract 125 µg/mL. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Human ALK-1 (ACVRL1) ELISA Kit (AB325255)

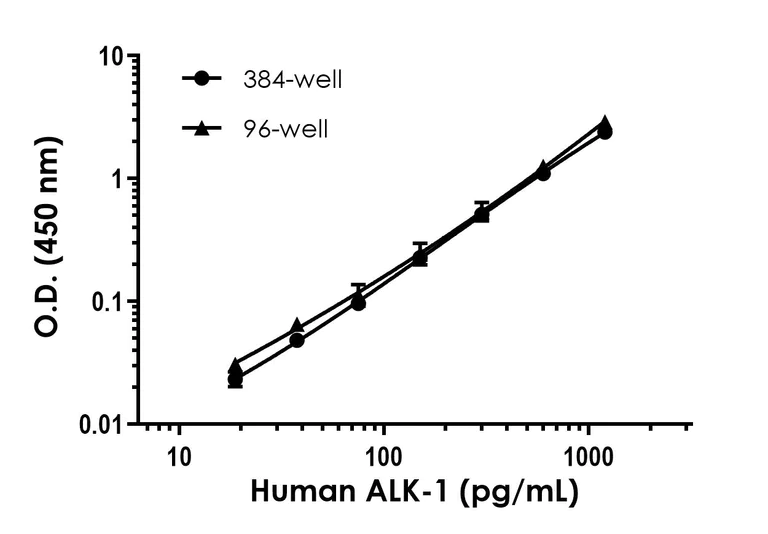

Example of human ALK-1 standard curve in 96-well vs. 384-well plate in 1X Cell Extraction Buffer SSW. Background-subtracted data values (mean +/- SD) are graphed.

sELISA

Lab

Sandwich ELISA - Human ALK-1 (ACVRL1) ELISA Kit (AB325255)

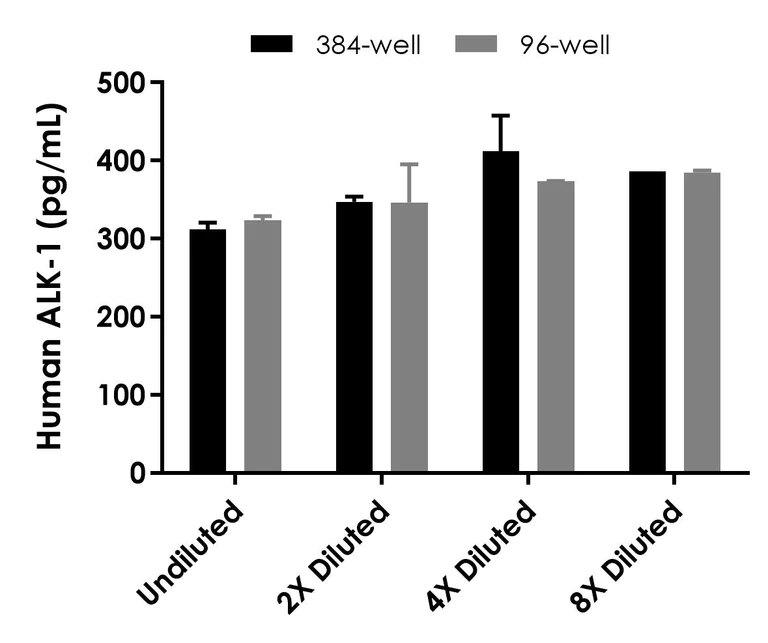

Interpolated concentration of native ALK-1 was measured in duplicate at different sample concentrations in 96-well vs. 384-well plates. Undiluted samples are 37.5 µg/mL EA.hy926 cell extract. The interpolated dilution factor corrected values are plotted (mean +/- SD, n=2). Sample dilutions are made in 1X Cell Extraction Buffer SSW.

sELISA

Lab

Sandwich ELISA - Human ALK-1 (ACVRL1) ELISA Kit (AB325255)

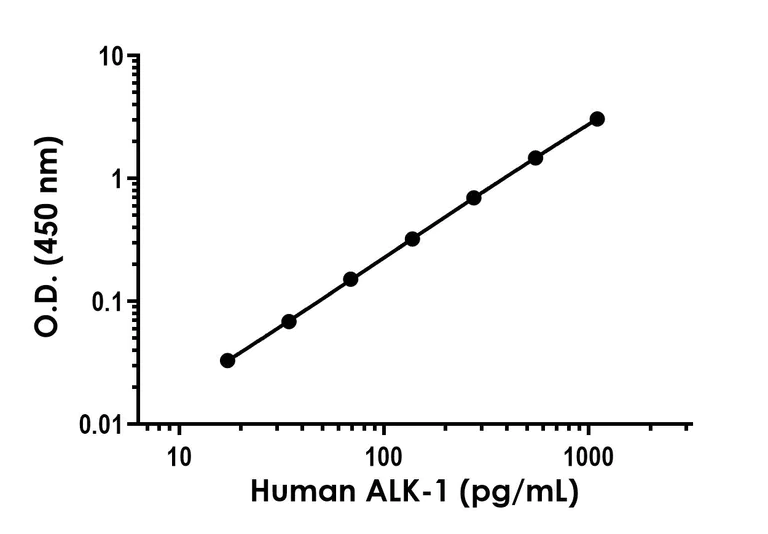

Example of human ALK-1 standard curve in 1X Cell Extraction Buffer SSW. Background-subtracted data values (mean +/- SD) are graphed.

Key facts

検出方法

Colorimetric

サンプルタイプ

Cell Lysate, Tissue Extracts

交差種

Human

アッセイタイプ

Sandwich

Quantitative

検出感度

= 9.65 pg/mL

検出範囲

17.188 - 1100 pg/mL

アッセイ時間

1h 30m

アッセイプラットフォーム

Pre-coated microplate (12 x 8 well strips)

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "sELISA": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

製品の詳細

Human ALK-1 (ACVRL1) ELISA Kit (ab325255) is a rapid single-wash sandwich 90-min ELISA to measure Human ALK-1 (ACVRL1) in Cell Extract, Tissue Extract. This SimpleStep sensitivity is 9.65 pg/ml.

How the assay works

Human ALK-1 (ACVRL1) ELISA Kit (ab325255) SimpleStep ELISA® employs capture antibodies conjugated to an affinity tag that is recognized by the monoclonal antibody used to coat our SimpleStep ELISA® plates. This approach to sandwich ELISA allows the formation of the antibody-analyte sandwich complex in a single step, significantly reducing assay time. See the SimpleStep ELISA® protocol summary in the image section for further details.

Assay Specificity

Our SimpleStep ELISA® kits use recombinant monoclonal antibodies rigorously validated to ensure the highest level of consistency and reproducibility, improved sensitivity and specificity and ease of scalability and security of supply.
Please refer to our protocol booklet for more details.

Human ALK-1 (ACVRL1) (ab325255) protocol summary

1. Mix : add samples / standards to the wells together with the capture and detector antibody cocktail. Incubate 1 hr at room temperature
2. Wash
3. Add TMB development solution - incubate for 10 min
4. Add Stop solution
5. Read the results on a plate reader at 450 nm

Save your precious samples

Our Human ALK-1 (ACVRL1) ELISA Kit only requires 12.5µL sample.

Design your own immunoassay

We offer the antibody pair used in this kit in a BSA and Azide-free format, ready for conjugation:

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

精度

[ { "reproducibilityType": "Intra", "sample": "Extract", "replicates": 8, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 4.5" }, { "reproducibilityType": "Inter", "sample": "Extract", "replicates": 3, "mean": null, "standardDeviation": null, "coefficientOfVariability": "= 7" } ]

style

left-column

回収率

[ { "sample": "Cell Lysate", "range": "107 - 108 %", "average": "= 108" }, { "sample": "Tissue Extracts", "range": "100 - 108 %", "average": "= 105" } ]

style

left-column

製品内容

{ "values": { "10x96Tests": { "sellingSize": "10 x 96 Tests", "publicAssetCode":"ab325255-10x96Tests", "assetComponentDetails": [ { "size":"10 x 1 Unit", "name":"Plate Seals", "number":"AB325255-CMP12" }, { "size":"20 x 1 Vial", "name":"Human ALK-1 (ACVRL1) Lyophilized Recombinant Protein", "number":"AB325255-CMP03" }, { "size":"10 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Detector Antibody", "number":"AB325255-CMP02" }, { "size":"10 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Capture Antibody", "number":"AB325255-CMP01" }, { "size":"1 x 200 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325255-CMP06" }, { "size":"10 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB325255-CMP10" }, { "size":"1 x 120 mL", "name":"TMB Development Solution", "number":"AB325255-CMP08" }, { "size":"10 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB325255-CMP04" }, { "size":"2 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB325255-CMP05" }, { "size":"1 x 120 mL", "name":"Stop Solution", "number":"AB325255-CMP09" } ] }, "1x384Tests": { "sellingSize": "1 x 384 Tests", "publicAssetCode":"ab325255-1x384Tests", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB325255-CMP12" }, { "size":"1 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Detector Antibody", "number":"AB325255-CMP02" }, { "size":"2 x 1 Vial", "name":"Human ALK-1 (ACVRL1) Lyophilized Recombinant Protein", "number":"AB325255-CMP03" }, { "size":"1 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Capture Antibody", "number":"AB325255-CMP01" }, { "size":"2 x 12 mL", "name":"TMB Development Solution", "number":"AB325255-CMP08" }, { "size":"1 x 50 mL", "name":"Cell Extraction Buffer SSW", "number":"AB325255-CMP05" }, { "size":"1 x 1 Unit", "name":"384 well CaptSure™ microplates", "number":"AB325255-CMP11" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB325255-CMP04" }, { "size":"2 x 12 mL", "name":"Stop Solution", "number":"AB325255-CMP09" }, { "size":"2 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325255-CMP06" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab325255-1x96Tests", "assetComponentDetails": [ { "size":"1 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Capture Antibody", "number":"AB325255-CMP01", "productcode":"" }, { "size":"1 x 600 µL", "name":"10X Human ALK-1 (ACVRL1) Detector Antibody", "number":"AB325255-CMP02", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human ALK-1 (ACVRL1) Lyophilized Recombinant Protein", "number":"AB325255-CMP03", "productcode":"" }, { "size":"1 x 6 mL", "name":"Antibody Diluent 4BR", "number":"AB325255-CMP04", "productcode":"" }, { "size":"1 x 10 mL", "name":"Cell Extraction Buffer SSW", "number":"AB325255-CMP05", "productcode":"" }, { "size":"1 x 20 mL", "name":"10X Wash Buffer PT (ab206977)", "number":"AB325255-CMP06", "productcode":"" }, { "size":"1 x 12 mL", "name":"Sample Diluent NS (ab193972)", "number":"AB325255-CMP07", "productcode":"" }, { "size":"1 x 12 mL", "name":"TMB Development Solution", "number":"AB325255-CMP08", "productcode":"" }, { "size":"1 x 12 mL", "name":"Stop Solution", "number":"AB325255-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"SimpleStep Pre-Coated 96-Well Microplate (ab206978)", "number":"AB325255-CMP10", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate Seals", "number":"AB325255-CMP12", "productcode":"" } ] } } }

style

left-column

出荷温度及び保存条件

出荷温度

Blue Ice

短期保存温度

+4°C

長期保存温度

+4°C

保管に関する情報

+4°C

style

left-column

style

left-column

製品プロトコール

style

left-column

ターゲットの情報

Type I receptor for TGF-beta family ligands BMP9/GDF2 and BMP10 and important regulator of normal blood vessel development. On ligand binding, forms a receptor complex consisting of two type II and two type I transmembrane serine/threonine kinases. Type II receptors phosphorylate and activate type I receptors which autophosphorylate, then bind and activate SMAD transcriptional regulators. May bind activin as well.

See full target information ACVRL1

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Abcam product promise

当社は、高品質な試薬を通じてお客様の研究を力強くサポートすることをお約束いたします。ご使用いただく各段階で、常にお客様をサポートできる体制を整えております。万が一、製品が期待通りに機能しない場合は、「Abcam Product Promise」による当社保証制度に基づき、安心してご利用いただけます。

保証に関する詳細については利用規約をご確認ください。

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
