AB269669

Human NRP1 knockout A549 cell lysate

Name: Human NRP1 knockout A549 cell lysate (ab269669) | Abcam
Brand: Abcam Limited
SKU: AB269669
Price: 118000 JPY
Availability: InStock

Be the first to review this product! Submit a review

(0 Publication)

NRP1 KO cell lysate available now. KO validated by Next Generation Sequencing, Western blot. Free of charge wild type control included. Knockout achieved by CRISPR/Cas9 X = 1 bp deletion Frameshift = 99.52%.

別名を表示する

A5 protein, BDCA4, BLOOD DENDRITIC CELL ANTIGEN 4, NP 1, NPN1, NRP, NRP1_HUMAN, Neuropilin-1, VEGF165R, Vascular endothelial cell growth factor 165 receptor, transmembrane receptor

1 Images

Lab

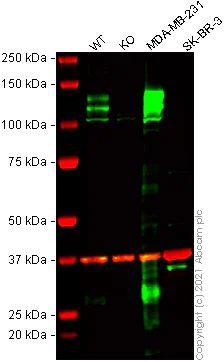

Western blot - Human NRP1 knockout A549 cell lysate (AB269669)

Lane 1 : Wild-type A549 cell lysate 20 μg

Lane 2 : NRP1 knockout A549 cell lysate 20 μg

Lane 3 : MDA-MB-231 cell lysate 20 μg

Lane 4 : SK-BR-3 cell lysate 20 μg

False colour image of Western blot : Anti-Neuropilin 1 antibody [EPR3113] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab81321 was shown to bind specifically to Neuropilin 1. A band was observed at 125/135 kDa in wild-type A549 cell lysates with no signal observed at this size in NRP1 knockout cell line ab269507 (knockout cell lysate ab269669). To generate this image, wild-type and NRP1 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-Neuropilin 1 antibody [EPR3113] (<a href='/products/primary-antibodies/neuropilin-1-antibody-epr3113-ab81321'>ab81321</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

NRP1 knockout A549 cell lysate at 20 µg

Lane 2:

Western blot - Human NRP1 knockout A549 cell line (<a href='/products/cell-lines/human-nrp1-knockout-a549-cell-line-ab269507'>ab269507</a>)

Lane 3:

MDA-MB-231 cell lysate at 20 µg

Lane 4:

SK-BR-3 cell lysate at 20 µg

Predicted band size: 103 kDa

Observed band size: 125-135 kDa

false

Key facts

細胞タイプ

A549

生物種

Human

組織

Lung

ノックアウト検証方法

Next Generation Sequencing,Western blot

ノックアウト変異

Knockout achieved by CRISPR/Cas9 X = 1 bp deletion Frameshift = 99.52%

疾病

Carcinoma

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

製品の詳細

Knockout cell lysate achieved by CRISPR/Cas9.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

Lysate preparation: Our lysates are made using RIPA buffer to which we add a protease inhibitor cocktail and phosphatase inhibitor cocktail (ratio: 300:100:10). This means that the protein of interest is denatured. If you require a native form of the protein please use the live cell version. Please refer to our lysis protocol for further details on how our lysates are prepared.

User storage instructions: Lyophilizate may be stored at 4°C. After reconstitution, store at -20°C for short-term storage or -80°C for long-term storage.

This product is subject to limited use licenses from The Broad Institute and ERS Genomics Limited, and is developed with patented technology. For full details of the limited use licenses and relevant patents please refer to our limited use license and patent pages.

style

left-column

製品内容

{ "values": { "1Kit": { "sellingSize": "1 Kit", "publicAssetCode":"ab269669-1Kit", "assetComponentDetails": [ { "size":"1 x 100 µg", "name":"Human wild-type A549 cell lysate", "number":"AB269669-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Human NRP1 knockout A549 cell lysate", "number":"AB269669-CMP01", "productcode":"" } ] } } }

style

left-column

出荷温度及び保存条件

遺伝子名

NRP1

遺伝子編集のタイプ

Knockout

遺伝子編集の方法

CRISPR technology

ノックアウト検証方法

Next Generation Sequencing, Western blot

出荷温度

Ambient - Can Ship with Ice

短期保存温度

-20°C

長期保存温度

-20°C

style

left-column

補足情報

This supplementary information is collated from multiple sources and compiled automatically.

Neuropilin-1 also known as NRP1 is a transmembrane protein with a significant role in the nervous and vascular systems. It has a molecular mass of approximately 130 kDa. Neuropilin-1 expression occurs broadly in tissues including neurons endothelial cells and tumor cells. Its structure includes a large extracellular domain that binds various ligands mediating several cellular functions. Neuropilin-1 is sometimes targeted in experiments using methods like neuropilin-1 ELISA and PE immunofluorescence to study its distribution and function in different tissues.

Biological function summary

Neuropilin-1 serves as a co-receptor for both the Vascular Endothelial Growth Factor (VEGF) and Semaphorin family proteins. It plays an important role in processes such as angiogenesis axonal guidance and the immune system. Neuropilin-1 does not function alone; it forms complexes with neuropilin-2 and other receptors like Plexin and VEGFR enhancing signal transduction pathways for angiogenesis and neuronal development. This involvement allows cells to respond appropriately to their environment especially during organismal development and repair processes.

Pathways

Neuropilin-1 facilitates interactions within the VEGF and Semaphorin pathways. In the VEGF pathway Neuropilin-1 enhances binding and signaling efficiency with VEGF closely working alongside VEGFR to promote endothelial cell survival migration and new blood vessel formation. In the Semaphorin pathway Neuropilin-1 interacts with Plexins mediating neuronal pathfinding and axonal growth. These interactions highlight Neuropilin-1's adaptive capabilities in various physiological processes critical for system development.

Neuropilin-1 is linked to pathological conditions like cancer and cardiovascular diseases. Neuropilin-1 overexpression is frequently observed in tumors driving cancer progression through enhanced angiogenesis and tissue invasion closely interacting with proteins like VEGF-A. In cardiovascular disease Neuropilin-1 contributes to abnormal blood vessel formation and stability. By studying Neuropilin-1 and other biomarkers like CD304 FITC researchers aim to develop therapeutic strategies targeting its role in these diseases.

style

left-column

Quality control

STR analysis

CSF1PO, D13S317, D7S820, D5S818, TH01, D16S539, TPOX

style

left-column

Cell culture

Biosafety level

EU: 1 US: 1

Adherent/suspension

Adherent

Gender

Male

style

left-column

製品プロトコール

Visit the General protocols
Visit the Troubleshooting

style

left-column

style

left-column

style

right-column

Abcam product promise

当社は、高品質な試薬を通じてお客様の研究を力強くサポートすることをお約束いたします。ご使用いただく各段階で、常にお客様をサポートできる体制を整えております。万が一、製品が期待通りに機能しない場合は、「Abcam Product Promise」による当社保証制度に基づき、安心してご利用いただけます。

保証に関する詳細については利用規約をご確認ください。

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
